Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Compliance industry standards |
IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af |
Power
| Input voltage |
100 - 240 V |
| Power over Ethernet (PoE) voltage |
48 V |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
2 |

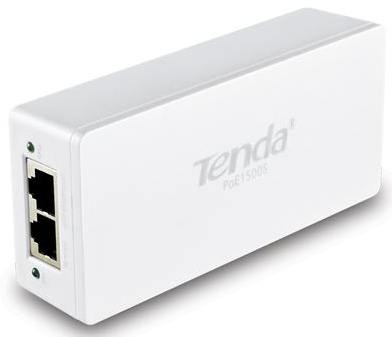

Tenda PoE1500s Twin CAT5 10/100/1000 Ports Adapter
- Complies with IEEE802.3, IEEE802.3u IEEE802.3ab and IEEE802.3af standards
- 2 RJ-45 ports provide 10/100/1000Mbps link rate;
- Plug and Play Installation
- Delivers both data and electrical power using a single Ethernet cable
PoE1500S PoE Adapter is fully compliant with IEEE802.3af standard. It delivers up to 15.4W output power per port. By using this device, both data and electrical power can be simultaneously delivered through a single CAT5 (or better) Ethernet cable to a non-PoE Ethernet-enabled device, eliminating the trouble to connect it to an outlet nearby with an external power cord. Above all, It could automatic detect whether the PD within the PoE receiving function, If not, it won't deliver power for safety. You can connect it to a wireless AP, Web cam (IP Camera), IP telephone, or other IEEE802.3af-compliant devices for the purpose of reducing installation cost and improving your network performance.
The PoE1500S allows you to provide power over Ethernet at minimum cost and effort. It enables to transmit power through the standard network cabling without adding PoE switch, eliminating the need for power wires.
With Gigabit wired connection speed, the PoE1500S provide blazing fast data rate transfers for streaming and lag-free Internet applications.
The device，made of high grade fire-resist materials, is designed with fashion and style. It’s ideal for surveillance and wireless networks, where cameras and AP typically difficult to be powered up by conventional wirings.
