Data transmission
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Switching capacity |
10 Gbit/s |
| Jumbo frames |
15000 |
| Packet forwarding rate (1 Gbps) |
1488000 pps |
| Packet forwarding rate (10 Mbps) |
14880 pps |
| Packet forwarding rate (100 Mbps) |
148800 pps |
Networking
| Auto MDI/MDI-X |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Networking standards |
IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Cable types supported |
Cat3, Cat5, Cat5e |
| Full duplex |
Y |
Power
| Power consumption (typical) |
2.5 W |
| Output voltage |
5 V |
| AC input voltage |
100-240 V |
| Power supply included |
Y |
| AC input frequency |
50/60 Hz |
| Output current |
0.6 A |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| DC-in jack |
Y |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Console port |
RJ-45 |
Operational conditions
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
Weight & dimensions
| Depth |
66 mm |
| Width |
96 mm |
| Height |
23 mm |
Design
| Case design |
Freestanding |
| LED indicators |
Activity, Link, Power |
| Certification |
CE, FCC, RoHS |
| Rack mounting |
N |
Performance
| Maximum cable length |
100 m |
| Stackable |
N |
Additionally
| Colour of product |
Black |
| AC adapter bundled |
Y |
| Operating temperature range (T-T) |
0 - 40 °C |
5 x 10/100/1000 Mbps, auto MDI/MDIX, IEEE 802.3/u/x/ab, CDMA/CD
Uninterrupted Gaming & HD Video Streaming

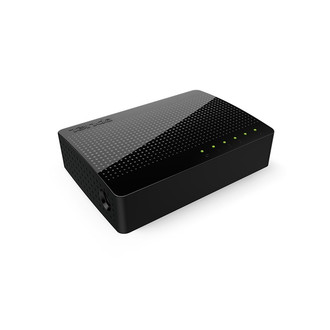

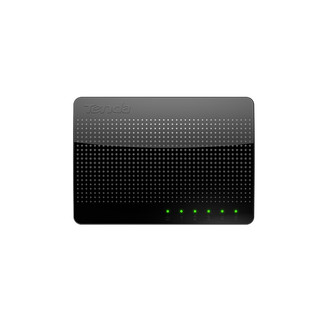

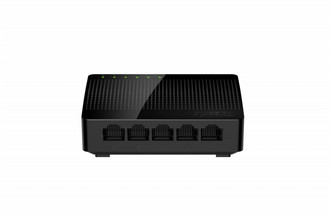

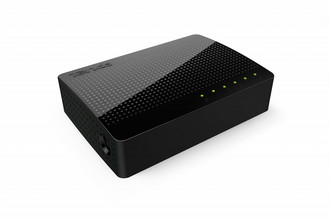

5-Port Gigabit Desktop Switch SG105.
What it does
SG105 is a 5-Port Gigabit Desktop SOHO switch. It provides 5 10/100/1000Mbps auto-negotiation ports, which you can use to establish a LAN network, or extend the uplink network. Compared with a 100M switch, it enhances transmission speed up to 10 times, eliminating the bottleneck of cascading bandwidth. It supports desktop installation and wall-mounting. Without configuration, it can be played once plugged.
With the stable connectivity and easy-to-use features, it is perfectly fit for the networking of school dormitories, small offices, home offices and Video Surveillance.
Main Features
- 5* 10/100/1000Mbps auto-negotiation ports;
- Auto MDI/MDIX simplifies networking and maintenance;
- Full wire speed forwarding ensures a smooth network experience;
- Flow control for full duplex and backpressure for half duplex avoids frame dropping as port blocked;
- Adopts store-and-forward mechanism and provides 2K MAC address table;
- 15K Jumbo frame improves the forwarding speed of large data;
- Adopts green and environmental ABS material, improving heat resistance and heat dissipation;
- Allows IP camera accessing and provides a running and clear image;
- Desktop and wall mounting simplify installation.
Gigabit speed, video transmission in seconds
Gigabit speed: In full duplex mode, the transmission speed can be 2000Mbps, 10x speed of fast ethernet , and data packets are forwarded at full wire speed.
Stay online for 7*24 hours and no packet loss
With store and forwarding mode, MAC address auto learning and auto aging , SG105 can transfer data without loss to ensure stable and blazing fast Wired network performance.
Stylish and exquisite design
SG105 is nice and small and won't take up much desk or floor space. With desktop or wall-mounting design design , you can put SG105 anywhere as you want and move flexibly. It comes in a pretty dome-shaped pattern Plastic case. It will fit equally well in any desktop decor. Not only for Wired network use， SG105 also can be a home ornament.
Plug and play, no configuration required
SG105 is nice and small and won't take up much desk or floor space. With desktop or wall-mounting design design , you can put SG105 anywhere as you want and move flexibly. It comes in a pretty dome-shaped pattern Plastic case. It will fit equally well in any desktop decor. Not only for Wired network use， SG105 also can be a home ornament.
