Data transmission
| MAC address table |
4096 entries |
| Store-and-forward |
Y |
| Switching capacity |
18 Gbit/s |
| Throughput |
13.4 Mpps |
Networking
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| Cable types supported |
Cat5 |
| 10G support |
N |
Power over Ethernet (PoE)
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Power over Ethernet (PoE) |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
9 x Gigabit Ethernet RJ-45 (4 x PoE RJ-45)

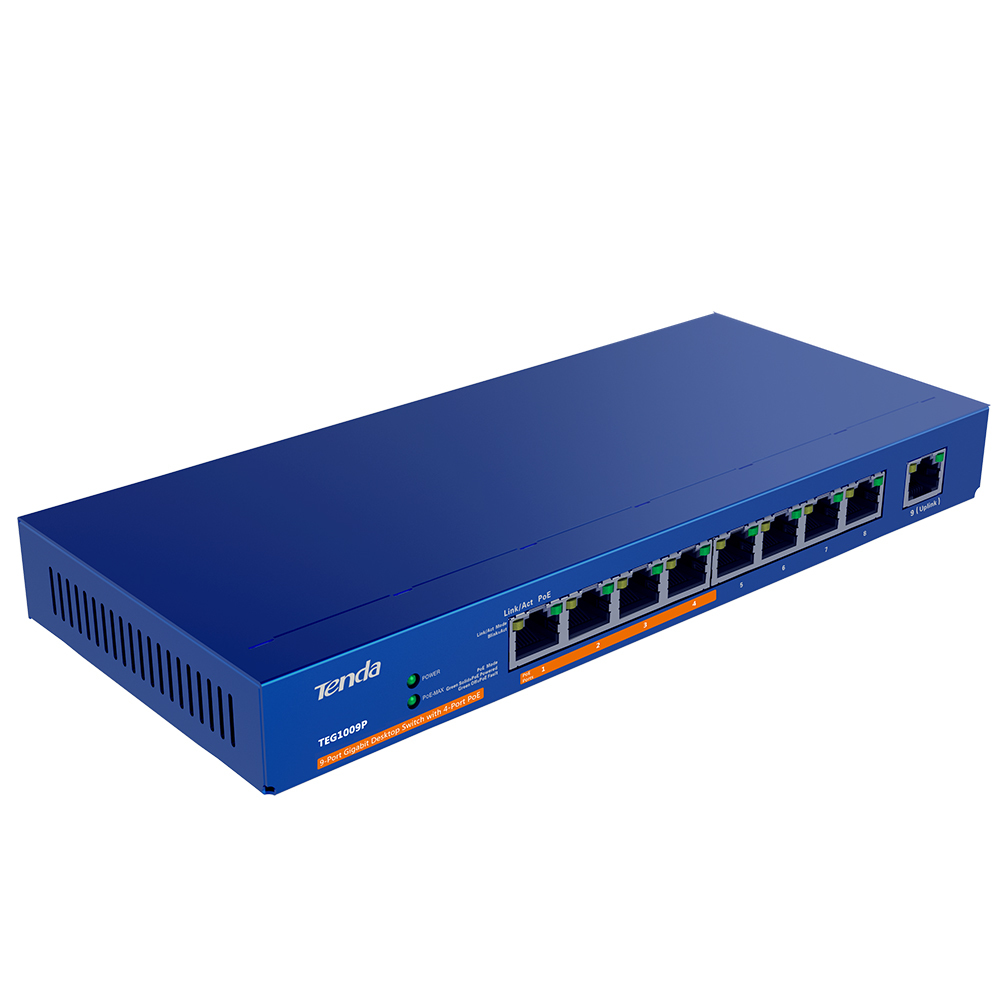

Tenda TEG1009P is 9-Port Gigabit Desktop Switch with 4-Port PoE, providing 9 GE Base-T Ethernet ports. 1-4 ports supports IEEE802.3af PoE(15.4W) or 802.3at PoE(30W) by two ports of 1-4 ports. Through conventional Cat 5 twisted pair, power can be transmitted along with data for AP, IP Camera and IP Phone. Plus, the device complies with 802.3az(EEE) standard, and is designed with superior performance such as 9th uplink port for lightning protection, PoE dynamic power, lower power consumption and fan-less. Thus, Wireless coverage, safety project, difficult power supply of end-device, maintenance hassle are effectively solved, TEG1009P is ideal for you to lower cost greatly.
