Data transmission
| MAC address table |
8192 entries |
| Store-and-forward |
Y |
| Switching capacity |
48 Gbit/s |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Combo SFP ports quantity |
2 |
Design
| Form factor |
1U |
| Rack mounting |
Y |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |

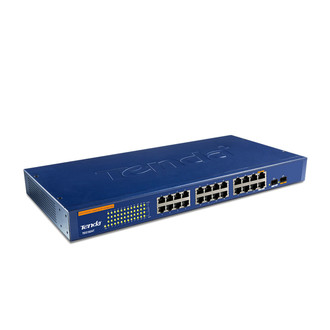

24-Port 10/100/1000 & 2 Gigabit Fiber SFP Unmanaged Switch
What It Does
Specially design to meeting the high bandwidth/speed network requirement of businesses , the TEG1024T, rack mountable Gigabit switch provides 2 SFP fiber ports and 24 10/100/1000Mbps RJ-45 ports with auto MDI/MDI-X crossover detection. Each RJ-45port can be linked down to a terminal Gigabit network device such as a PC or up to a Gigabit backbone network. Upgrade your existing 100M network to Gigabit with this cost-effective switch to substantially boost the transmission speed between server and clients as well as among departments.
Gigabit Connection
24 Gigabit copper ports plus 2 SFP fiber ports together with up to 48Gbps switching capacity significantly extend your LAN coverage far beyond 100 meters.
19-inch Rack Mount
Neatly housed in a sturdy 1U metal case, the device fits nicely into a standard 19-inch rack. Plus, it comes with internal power supply for compactness. RJ-45 ports can auto-sense straight-through or cross-over connection, half or full duplex mode, and make the right choice.
Line Speed Forwarding
Packed with a set of features: up to 48Gbps switching capacity, nonblocking line speed forwarding, store and forwarding architecture and 8K MAC address table, the device neatly meets the needs of diversified applications.
