Management features
| Multicast support |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8192 entries |
| Store-and-forward |
Y |
Networking
| VLAN support |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
| Spanning tree protocol |
Y |
| Flow control support |
Y |
| 10G support |
N |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| SFP module slots quantity |
2 |
| Gigabit Ethernet (copper) ports quantity |
8 |
Protocols
| Management protocols |
SNMP v1/v2c |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) ports quantity |
8 |
| Power over Ethernet (PoE) |
Y |
Design
| Form factor |
1U |
| Rack mounting |
Y |

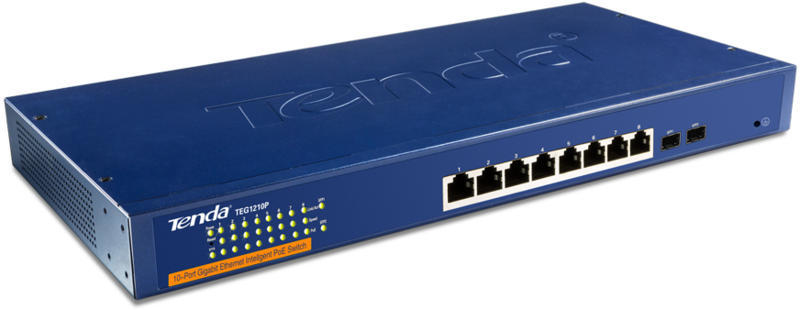

8-Port 10/100/1000 & 2 Shared Mini-GBIC Port Gigabit Smart Switch
What It Does
The TEG1210P Web Smart Switch is specially designed for small business networking that offers corporate network a remarkable boost of speed and capacity at minimum cost and effort. The switch offers basic web management functionality that makes it be configured from any network computer through an internet browser. Business with limited IT resources can deploy the switch to set up a manageable network without having to go through complex SNMP management. This switch is ideal for enhancing the performance and security of small business network.
Power over Ethernet
The switch with 8-port 802.3af Power over Ethernet (POE) carries electric power over the Ethernet cables. By transmitting remote power through the standard network cabling, the switch provides a centralized power source for IP phones, cameras and wireless AP, eliminating the need for individual power cabling to these devices.
Gigabit Performance
The switch provides 16 Autosensing 10/100/1000 switched port with auto MDI/MDI-X crossover detection. It delivers a total bandwidth of up to 2000Mbps on each port. Also, it is built with two Gigabit SFP extension slots to boost LAN speeds.
High Switching Capacity
The switch offers a switching capacity of up to 32Gbps to meet the performance needs for even the most bandwidth-hungry applications. It supports non-blocking, utilizes store-and-forward mode, and provides 8k MAC entries.
