Data transmission
| MAC address table |
4000 entries |
| Store-and-forward |
Y |
| Supported data transfer rates |
10/20/100/200Mbit/s |
| Maximum data transfer rate |
0.2 Gbit/s |
Ports & interfaces
| ExpressCard slot |
N |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
16 |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Other features
| Installed ports |
16 |
| Power LED |
Y |
| Wi-Fi |
N |
| Networking features |
Ethernet, Fast Ethernet |
| Bandwidth |
3.2 Gbit/s |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Performance
| Packet buffer memory |
2 MB |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |
16-port Fast Ethernet Switch, IEEE802.3, IEEE802.3u, IEEE 802.3x, Store-&-forward, flow control, 4K MAC Address Table, Auto MDI/MDIX, 10/100Mbps, 3.2Gbps Backplane Bandwidth, 16x RJ45

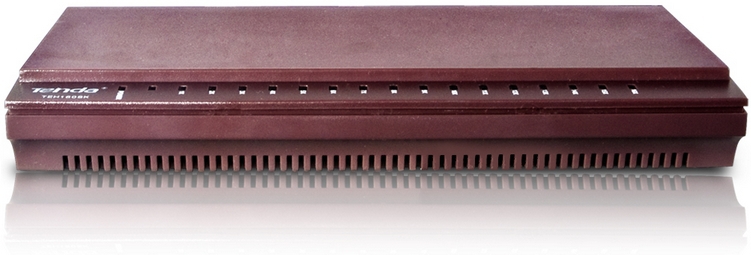

TEH160SK, which is the sample of the TENDA’s Fast Ethernet Switch, centralizes profound research and fashion smart appearance in the network Switch area. MINI Switch is specially designed for the SOHO network, especially for the medium/small enterprises. With great stability and easy-to-use, the Switch can assist you to organize your network. To ensure 16 10/100Mbps ports without congestion, it adopts Infineon chip design scenario and up to 3.2Gbps backplane bandwidth. Furthermore, it integrates 4K MAC address table and automatically study MAC address. Moreover, it supports multiple functions such as NWAY Auto-Negotiation, Auto MDI/MDIX. Without considering network management, you can own a stable and effective network.
- 16 10/100Mbps ports connect to the workstation and support Auto MDI/MDIX to simplify network fragment and maintenance.
- Complies with IEEE802.3, IEEE802.3u Ethernet Standards.
- Supports NWAY auto-negotiation function, auto detect transmission rate and duplex models, UPnP and automatically chooses the best network connectivity mode.
- Supports IEEE802.3x full-duplex flow control and half-duplex backpressure flow control.
- Supports non-blocking line speed transfer.
- Adopts store-and–forward mode, supports MAC address studying automatically and integrates 4K MAC address table to desire all kinds of application.
- Easy-to-use external Power.
