Data transmission
| Store-and-forward |
Y |
| MAC address table |
8000 entries |
| Supported data transfer rates |
10/20/100/200Mbit/s |
| Maximum data transfer rate |
0.2 Gbit/s |
Networking
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| 10G support |
N |
Other features
| Installed ports |
24 |
| Power LED |
Y |
| Wi-Fi |
N |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Bandwidth |
4.8 Gbit/s |
| Input frequency |
50/60 Hz |
| Networking features |
Ethernet, Fast Ethernet |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| ExpressCard slot |
N |
| Copper ethernet cabling technology |
100BASE-TX, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
24 |
Performance
| Packet buffer memory |
2 MB |
Power
| Input voltage |
100 - 240 V |
| Input current |
0.2 A |
| Output power |
9 W |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Ethernet LAN connection |
Y |
| Wireless technologies |
Wired |

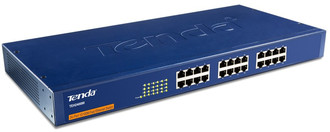

24-Port 10/100M Ethernet Switch, IEEE802.3, IEEE802.3u, IEEE 802.3x, Store-&-forward, flow control, 8K MAC Address Table, Auto MDI/MDIX, 10/100Mbps, 4.8Gbps Backplane Bandwidth, 24x RJ45
TEH2400M offers 24 10/100Mbps Auto-Negotiation ports. All the ports, supporting Auto MDI/MDIX, can either connect to the common terminal or uplink to the other network devices to extend your network easily and conveniently. It offers an easy, economical, high-performance, standard solution method transferring to 100M network. With great flexibility, easy-to-use, convenient installation, and super performance, it is ideal choice for the medium/small enterprises and SOHOs.
- Complies with IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX Fast Ethernet standards.
- 24 10/100Mbps Auto-Negotiation ports.
- 8K MAC address studying/renewing automatically.
- All the ports can automatically diagnosis half-/full-duplex modes.
- Dynamic buffer area automatically allocates to realize network load balancing and prevent the packing from losing.
- Automatically examine all kinds of error frames to ensure data packing right.
- Automatically studies and sets up the MAC Address Table of connection devices.
- Equips with internal Switch Power for the metal chassis rack Switch.
