Ports & interfaces
| Host interface |
PCI |
| Internal |
Y |
Other features
| Networking features |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Link/Act LED |
Y |
| Power LED |
Y |
Bandwidth
| Full duplex |
Y |
| Supported data transfer rates |
10/20/100/200/1000/2000Mbit/s |
Networking
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 1000BASE-T |
| Flow control support |
Y |
Performance
| Mac operating systems supported |
Y |
System requirements
| Internet connection required |
Y |
Additionally
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Ethernet LAN connection |
Y |
| Jumbo Frames support |
Y |
| Wireless connections |
N |
| Transfer rate (Mbps) |
2000 Mbit/s |
Gigabit Ethernet Adapter, PCI, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, QoS, NMA auto-negotiation, UPnP, ACPI

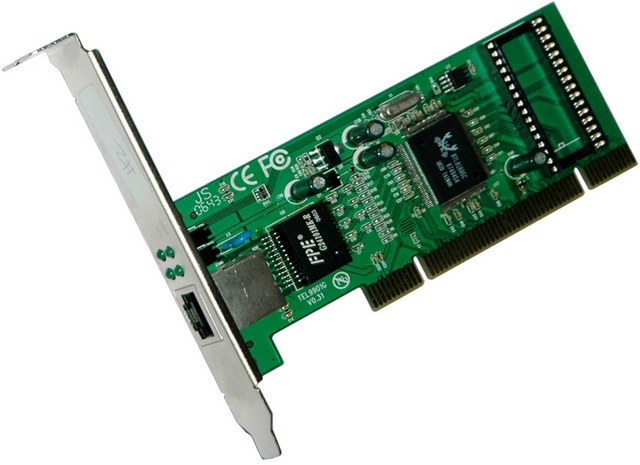

The TEL9901G is an auto-negotiation Gigabit Ethernet adapter fully compliant with PCI2.2. It offers speeds sufficient to meet the needs of today's most demanding network applications in 1000Mbps full-duplex mode. In addition, this adapter supports ACPI power management and NMA auto-negotiation. The TEL9901G is an easy and economic way to get your PC or server on a Gigabit network.
- Complies with IEEE 802.3x full-duplex and flow control.
- Complies with IEEE 802.3, IEEE 802.3u, and IEEE 802.3ab.
- VLAN support with IEEE 802.1q priority queuing.
- Supports QoS.
- NMA auto-negotiation.
- Supports UPnP.
- Auto-negotiation 10/100/1000Mbps LAN port.
- Complies with PCI 2.2.
- ACPI power management.
- Supports jumbo frames.
- Provides up to 2000Mbps transmission rate.
- Boot ROM socket.
- Compatible with all major OSs.
