Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| Universal Plug and Play (UPnP) |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
150 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Security
| URL filtering |
Y |
| MAC address filtering |
Y |
Other features
| Mobile network connection |
N |
| xDSL connection |
N |
| Bandwidth (first) |
2.4 GHz |
| Rack mounting |
N |
| Input current |
0.3 A |
| Frequency band |
2.4 GHz |
Antenna
| Antenna type |
Internal |
| Antenna gain level (max) |
10 dBi |
| Antenna connector type |
RP-SMA |
| Antennas quantity |
1 |
Protocols
| DHCP client |
Y |
| DHCP server |
Y |
Additionally
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
802.11 b/g/n, 150Mbps, 2.4GHz, Fast Ethernet, White
- 802.11n standard, backward compatible with 802.11g/b;
- 2.4GHz, wireless speeds of up to 150Mbps
- Supports router, AP, WISP, Universal repeater, and WDS
- Easily upgrade to higher gain external antenna
- Programmable transmitted output power
- IP-based QoS bandwidth management

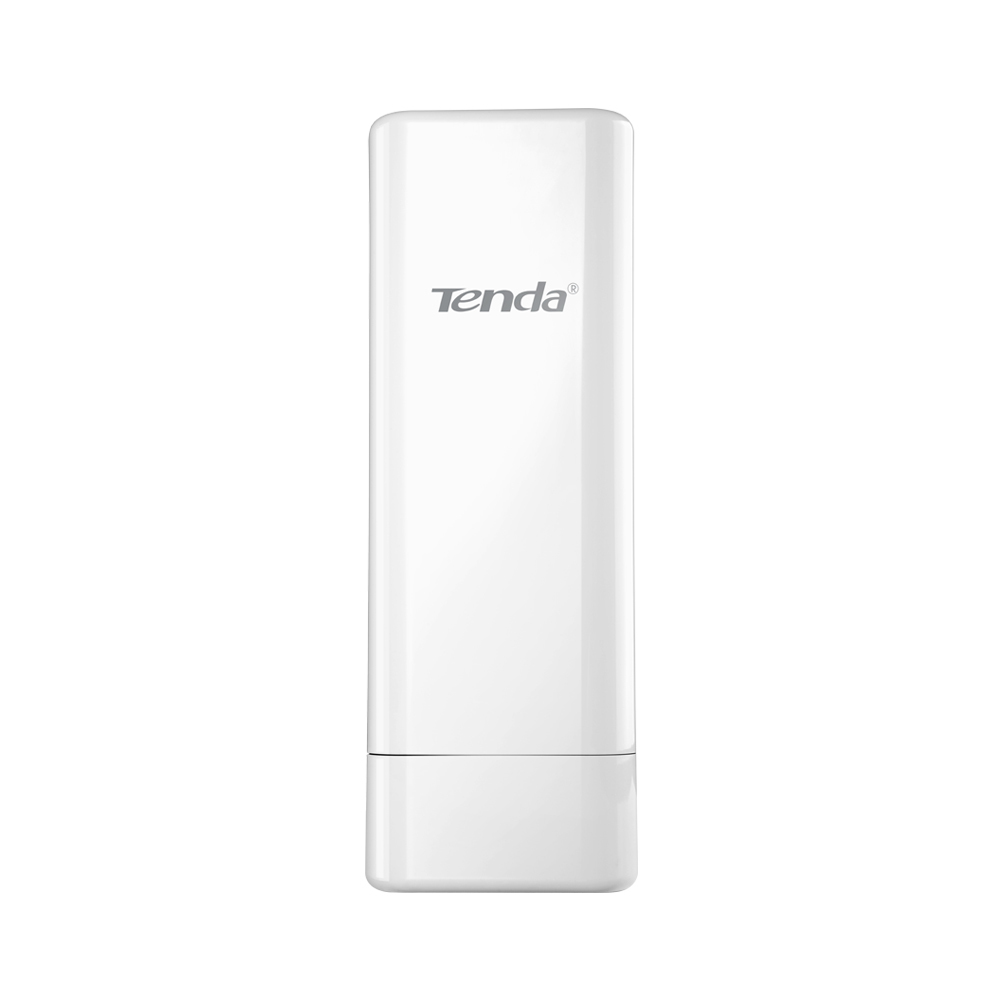

The Tenda W1500A is an outdoor long range wireless AP/Router with wireless speeds of up to 150Mbs. Combining the function of a wireless router, wireless AP, WISP, universal repeater, and WDS, the device features high transmitted output power and high receivable sensitivity, which can extend range and coverage to reduce the roaming between Access Points to get a more stable wireless connection. With IP64 and up to 6000V lightning protections, it is suitable for any outdoor enviroments. The device also comes with PoE injector for buidling in outdoor enviroment easily. Therefore, with attractive design, high performance, and feature-rich, the W1500A is an ideal wirelsss solution for your residence or office.
Long Distance Transmission Capability
With programmable transmitted output power of up to 500mW and a 10dBi high gain directional antenna, the W1500A can provide a reliable wireless connection ranging multiple kilometers. Also, the device provides RP-SMA connector for upgrade with higher gain antenna for even better coverage.
Engineered for Outdoor Use
The W1500A comes with a IP64 housing which can effectively protect itself from water and dust. The device also designs with lightning protection of up to 6000 voltage to against harms from surge current. In addition, it comes with a PoE injector for buidling in outdoor enviroment easily.
Multiple Applications
- Wirelessly connect to WISP and share Internet access with multiple clients across its wireless network
- Easily share Internet access with your neighbors or friends nearby
- Neatly interconnect two or more relatively distant LANs using the WDS mode
- Wirelessly monitor network using the universal repeater mode
