Ethernet LAN features
Cabling technology |
10/100Base-T(X) |
Ethernet LAN interface type |
Fast Ethernet |
Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
Universal Plug and Play (UPnP) |
Y |
Reset button |
Y |
Web-based management |
Y |
Protocols
DMZ support |
Y |
DHCP client |
Y |
DHCP server |
Y |
Wireless LAN features
Top Wi-Fi standard |
IEEE 802.11n |
WLAN data transfer rate (max) |
300 Mbit/s |
Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Other features
xDSL connection |
N |
Bandwidth |
2.4 GHz |
Antenna
Antenna type |
external |
Antenna gain level (max) |
7.5 dBi |
Transmit power |
0 - 18 dBmW |
Antennas quantity |
3 |
Additionally
Ethernet LAN connection |
Y |
Ethernet LAN (RJ-45) ports quantity |
4 |

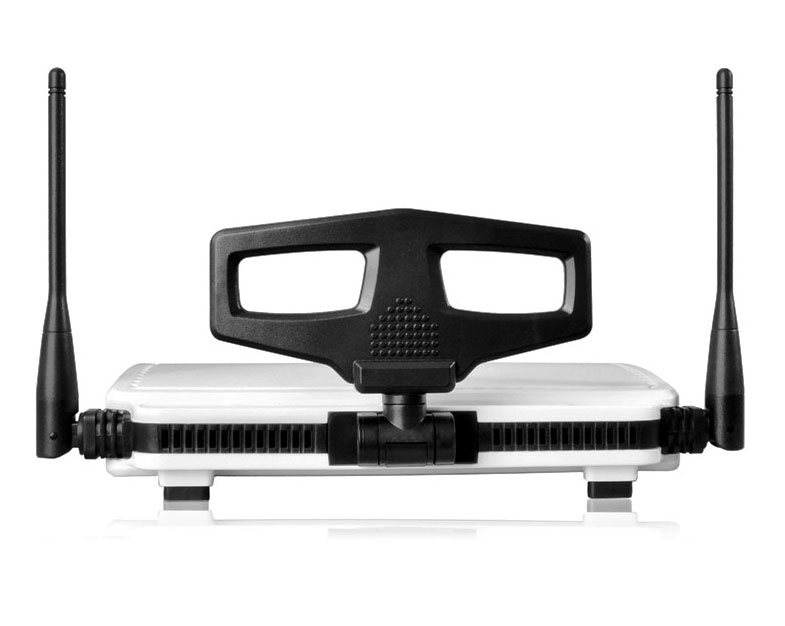

W302R - 802.11b/g/n, 300Mbps, 2.4GHz, 3x 2.5dBi antennas, 11 Channels, Fast Ethernet, White/Black
The W302R is a 300Mbps Wireless-N router, wireless access point, four-port switch, and firewall all-in-one.
Utilizing advanced MIMO technology in the IEEE 802.11n (draft 2.0) standard, WLAN range is double that of 802.11g products.
Plenty of features are bundled to better secure and manage a network, including; port and MAC address filters and the ability to disable SSID broadcast.? Management from anywhere is conveniently accomplished through a local/remote Web management interface, and a Tenda-developed setup wizard makes installation easy for anyone.
The W302R is a great choice for small or home offices in search of a fast, secure, easy-to-use, and feature-rich wireless network.
