Power
| Power consumption (max) |
9 W |
| Power over Ethernet (PoE) |
Y |
Antenna
| Antennas quantity |
2 |
| Antenna gain level (max) |
3 dBi |
| Integrated antenna |
Y |
Performance
| Firmware upgradeable |
Y |
| Reset button |
Y |
| Frequency band |
2.4 - 2.483 GHz |
| Number of users |
12 user(s) |
| Modulation |
CCK, 64-QAM, DQPSK, OFDM, BPSK, DSSS, DBPSK, QPSK, QAM |
| 2.4 GHz |
Y |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45), ADSL (RJ-11) |
Additionally
| Transfer rate (Mbps) |
300 Mbit/s |
1 x RJ-11, 2 x FE LAN, 1 x USB 2.0, 802.3af PoE, 802.11b/g/n, 300 Mbps, 18dbm

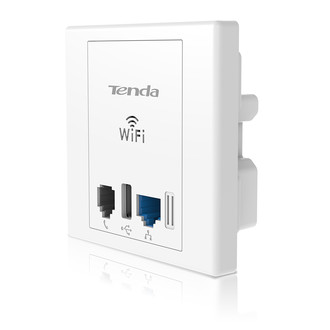

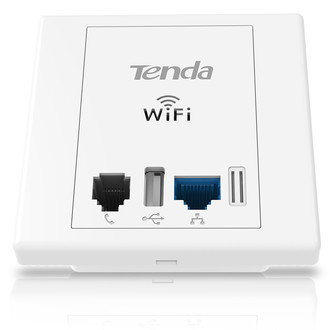

<b>Wireless N300 Wall Plate Access Point</b>
W312A is the latest generation wall plate Wi-Fi access point (AP) which can be installed in any 86mm wall plate without breaking the existing decorations and is easily managed. It is well suited to university dormitories, hospital wards, hotel rooms and other sites with densely divided rooms. It helps mitigate signal quality problems caused by traditional AP deployment in such sites, and greatly reduces capital expenses and operation expenses in running these sites.
<b>Wireless N300 Speed</b>
W312A transfer rates of up to 300 Mbps on the 2.4 frequency bands for faster file transfers and smoother video streaming.
<b>Standard 86mm Panel Design</b>
W312A uses a standard 86 x 86mm wall plate and can leverage existing 86mm network panel cover. No professional skill is needed to install the W312A. As W312A sticks to 86 x 86 standard wall plate size, it will pose no problem to neighborhood panels or other decorations, and create negligible changes to existing decorations.
<b>Power Over Ethernet(802.3af)</b>
The port on the back panel support Power over Ethernet (PoE) functionality, which allows both power and data to be carried over a single Ethernet cable to W312A.
<b>USB Charger</b>
W312A provides a 5V 500mA USB charger output port, you can use your existing USB charging cables to charge most USB powered devices like Smart Phones, MP3 Players.
<b>Advanced Wireless Security</b>
W312A offers multi-level wireless encryption options to prevent unauthorized access and protect your important data. 1.64/128bit WEP,WPA-PSK,WPA2-PSK,WPA&WPA2-PSK,WPA,WPA2 2.Wireless Access Control based on the mac address of wireless adapter
<b>SSID to VLAN tagging</b>
W312A can be configured to broadcast up to two SSID. Each SSID can be tagged to a specified network VLAN for different user access based on established access rights.
