Performance
| Maximum indoor range |
300 m |
| Reset button |
Y |
| Frequency band |
2.4 - 2.483 GHz |
| Transmitting power |
200 dBmW |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Internal memory |
32 MB |
| Flash memory |
8 MB |
| Modulation |
OFDM, DSSS |
| 2.4 GHz |
Y |
| Channels quantity |
13 |
Power
| Power over Ethernet (PoE) |
Y |
Antenna
| Antenna gain level (max) |
3 dBi |
| Antennas quantity |
2 |
Security
| Number of SSID support |
4 |
| VPN support |
PPTP, L2TP |
Additionally
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Transfer rate (Mbps) |
300 Mbit/s |
300Mbps, 2.4GHz, IEEE 802.11b/g/n, Fast Ethernet, white/grey
W330A is 2.4GHz 300m fit AP. It works with Access Controller AC500 to provide the wireless solution for hotels, resorts, office buildings, campus or other environment. Adopt of ceiling design, W330A can be mounted on the ceiling and wall inconspicuous. Compliant with PoE 802.3af, It can be deployed in areas where power outlets are scarce or not available through PoE switch.
<b>2.4G 300Mbps</b>
W330A transfer rates of up to 300 Mbps on the 2.4 radio for faster file transfers and smoother video streaming.
<b>Ceiling Design</b>

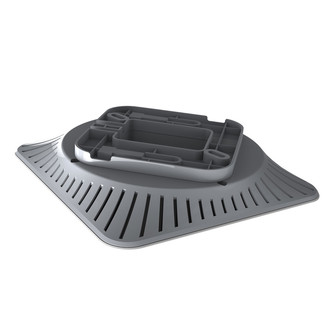

Adopt of aesthetic ceiling design,W330A can be mount on ceiling or wall inconspicuous.
<b>Compliant with PoE 802.3af</b>
Compliant with PoE 802.3af, the port on the back panel allows both power and data to be carried over a single ethernet cable, so the W330A can be deployed in areas where power outlets are scarce or not available.
<b>SSID to VLAN tagging</b>
W330A can be configu#e50 to broadcast up to 4 SSID, each SSID can be tagged to a specified network VLAN for different user access based on established access rights.
<b>Centralized Management</b>
W330A can be managed by the Access Controller AC500, the network administrator can modify the description and manage SSID, Channel, Security, Output power more easily.
