System requirements
| Minimum processor |
800 |
| Minimum RAM |
256 MB |
Ports & interfaces
| Host interface |
FireWire |
| Headphone outputs |
1 |
| MIDI/Joystick port |
Y |
Audio
| Audio quality |
24 bit |
| Internal |
N |
| Audio system maximum sampling rate |
192 kHz |
| Line-out Signal-to-Noise Ratio (SNR) |
111 dB |

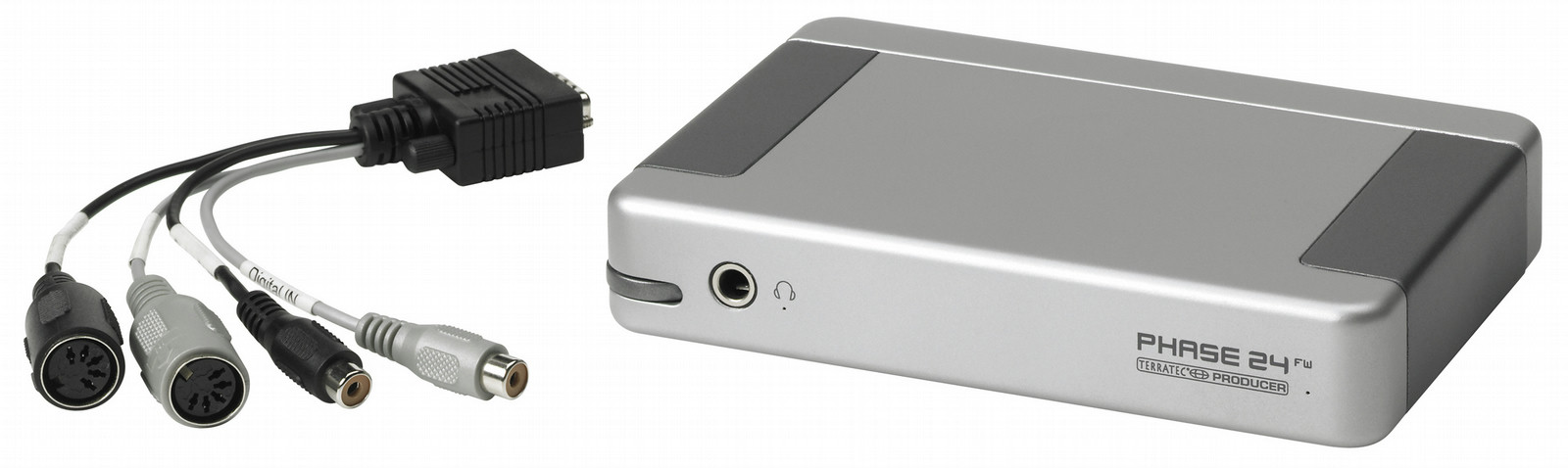

Phase 24, 24 Bit/192 kHz, External FireWire System
High end audio meets eye-catching design: The external FireWire™ system PHASE 24 FW!
The TerraTec PHASE 24 FW combines fine design and superior specs. Regardless of whether you're using the PHASE 24 FW on the move with your notebook or at home with your PC or Mac - this versatile audio system cuts a fine figure in any situation.
Simply connect the high grade aluminium case to the FireWire™ port of your computer for fast, uncomplicated data exchange.
The required cables and adapters are included, of course. The two analog mono inputs and outputs have been realized as professional, balanced ¼" jacks - the studio standard simplifies the connection of additional equipment. DJs, for example, can create mixes on their laptops using applications such as the included Native Instruments Traktor, add an external beatbox,insert effects between the PHASE 24 FW and the computer,and control it all via a MIDI keyboard. The integrated digital hardware mixer ensures that all this happens nearly without any latencies at all. An additional stereo out can be used as a line out or adjustable headphone output.
You always have complete control over brilliant, full sound - thanks to 24 Bit/192 kHz signal processing and a signal-tonoise ratio of 111 dB. The PHASE 24 FW unites proven hightech with innovative ideas and exclusive design into a harmonious whole. In the club or in the studio.
