Other features
| Link/Act LED |
Y |
| Expansion slots |
PCI-e x 8 |
| Serial interface type |
RS-232 |
| Networking features |
Gigabit Ethernet |
Storage
| Maximum supported storage capacity |
14 TB |
| Supported file systems |
XFS, ZFS |
| Total installed storage capacity |
14000 GB |
| Number of storage drives supported |
7 |
Networking
| iSCSI support |
Y |
| DHCP client |
N |
| DHCP server |
Y |
| Supported network protocols |
TCP/IP, Appletalk, SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP |
| Compliance industry standards |
802.3ad |
Performance
| Multilingual support |
Y |
| Access Control List (ACL) |
Y |
Power
| Power supply unit (PSU) capacity |
300 W |
Additionally
| Jumbo Frames support |
Y |
| Internal RAM type |
DDR2 |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Internal RAM |
2 GB |
| Transfer rate (Mbps) |
1000 Mbit/s |

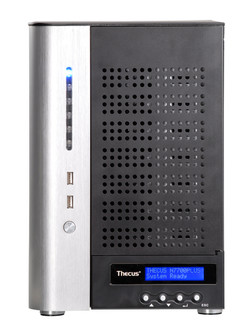

N7700+ 14TB 7-Bay NAS Server
Ready For the Future
Future technologies are around the corner, and the N7700+ is ready. With its PCI-e slot, the N7700+ can accommodate a number of emerging technologies. Add a 10Gb Ethernet adaptor and experience the lightning-fast file transfers. With PCI-e expansion, the N7700+ is ready for whatever may come.
Unique Dual DOM™ Design
In business, having access to mission-critical data at all times is crucial. The N7700+ is equipped with a dual Disk On Module (DOM) design to ensure flawless operation and maximum uptime.
Stackable Storage and iSCSI Ready
The N7700+ supports iSCSI initiators, which allows servers to access it as a direct-attached-storage device over LAN or Internet with excellent transfer speeds. With this capability, users can centrally manage and deploy storage for their entire network. In addition, the N7700+ is also stackable, enabling users to connect their unit with up to five additional N7700+s via a master system as a large data pool. With iSCSI and stackability, expanding the capacity of application servers is both quick and easy.
Maximum Flexibility and Expansion
Aside from being iSCSI ready, the N7700+ offers unmatched flexibility. Support for multiple file systems including Ext3, XFS and ZFS, as well as online RAID migration and expansion, means that the N7700+’s data protection and capacity are upgradable and can be integrated into virtually any company network with ease. Users can add larger hard disks to available slots and join an existing RAID volume. The N7700+ will automatically rebuild the RAID array and increase storage capacity.
Handy Snapshot Feature for Version Control
The N7700+ is capable version control via a snapshot function with the ZFS file system, allowing users to efficiently create and restore remote backups. For users, the result is total data security and peace of mind.
