Other features
| Link/Act LED |
Y |
| Expansion slots |
1x PCI-e X1 |
| Networking features |
Gigabit Ethernet |
Ports & interfaces
| Serial ports quantity |
1 |
| eSATA |
Y |
Processor
| Number of processors installed |
1 |
| Processor frequency |
1.86 GHz |
Performance
| Noise level |
34.5 dB |
| Multilingual support |
Y |
| Access Control List (ACL) |
Y |
| Web-based management |
Y |
Storage
| Maximum supported storage capacity |
14 TB |
| Number of storage drives supported |
7 |
| Supported file systems |
ZFS |
| Number of storage drives installed |
7 |
| Total installed storage capacity |
10500 GB |
| Storage drive capacity |
1500 GB |
Networking
| iSCSI support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
SMB/CIFS, HTTP/HTTPS, FTP, NFS v3, AFP |
| Compliance industry standards |
IEEE 802.3ad |
Power
| Power supply unit (PSU) capacity |
300 W |
Additionally
| Internal RAM type |
DDR2 |
| Internal RAM |
2 GB |
| Jumbo Frames support |
Y |
| On/Off switch |
Y |
| Transfer rate (Mbps) |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
2 |

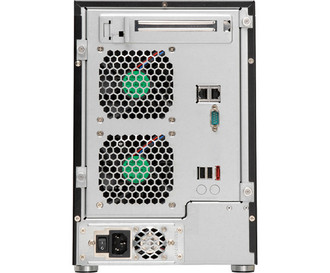

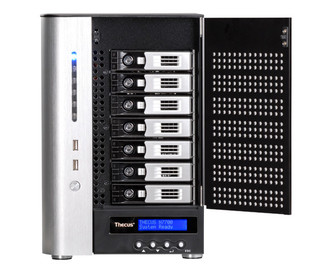

N7700, 10.5 TB (7x 1.5TB SATA HDDs), 2GB DDR2, Intel Celeron M 1.86GHz, Gigabit Ethernet, 34.5 dB, 300 W
Stackable Storage and iSCSI Ready
The N7700 supports iSCSI initiators, which allows servers to access it as a direct-attached-storage device over LAN or Internet with excellent transfer speeds. With this capability, users can centrally manage and deploy storage for their entire network. In addition, the N7700 is also stackable, enabling users to connect their unit with up to five additional N7700s and manage them via a master system. With iSCSI and stackability, expanding the capacity of application servers is both quick and easy.
Speed Without Compromise
Equipped with a PCI-e interface, the N7700 provides even faster response and more concurrent connections. Also, with built-in compatibility with external modules, the N7700 can execute and run multiple applications at the same time, allowing it to handle a whole lot more than mere file storage.
RAID Expansion and RAID Level Migration
The N7700 features RAID capacity expansion and RAID level migration, which means that users can add larger hard disks to available slots and join an existing RAID volume. The N7700 will automatically rebuild your RAID array and increase your storage capacity.
Multiple File System Support
To meet upcoming standards and ensure maximum compatibility and flexibility, the N7700 offers support for ext3 and ZFS file systems. Users can select the system that they require and create the needed capacity for different applications. Never has there been a NAS unit this powerful and flexible.
Version Control and Remote Replication
The N7700 is also equipped with Nsync, Thecus’ remote data backup application. With Nsync, users can have the N7700 automatically upload files to an external storage device at a designated time. The N7700 is also capable version control via a snapshot function with the ZFS file system, allowing users to efficiently create and restore remote backups. For users, the result is total data security and peace of mind.
