Weight & dimensions
| Fan dimensions (W x D x H) |
101 x 108 x 14 mm |
| Heatsink weight |
320 g |
| Fan weight |
40 g |
| Heatsink dimensions (W x D x H) |
121 x 105 x 44 mm |
Performance
| Maximum airflow |
44.5 cfm |
| Minimum airflow |
16 cfm |
| Noise level (low speed) |
22 dB |
| Noise level (high speed) |
30 dB |
| Rotational speed (min) |
900 RPM |
| Rotational speed (max) |
2500 RPM |
| Type |
Cooler |
| Suitable for |
Processor |
| Number of fans |
1 |
| Fan diameter |
120 mm |
| Number of heat pipes |
6 |
| Heat pipes diameter |
6 mm |

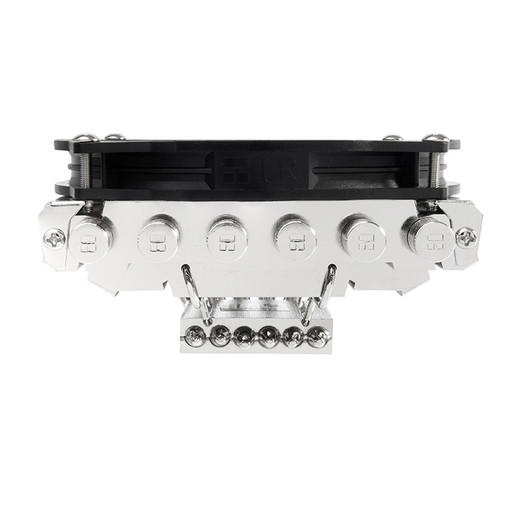

AXP-100R
- Designed for ITX and HTPC systems.
- Total height is only 58mm (2.28 inches) including the TY-100 fan.
- The adjustable Enhanced Fan Mount is capable of mounting Thermalright’s
- TY-100R series fans & 120mm fans.
- Full nickel plating of the six heatpipes and heatsink body ensures optimal anti-oxidization.
- Supports all modern CPU sockets and platforms.
We know that cooler choice has long been a headache for ITX and HTPC system builders. Stock CPU heatsinks and coolers are hot and noisy, while high quality coolers usually either don’t fit the case or interferes with your GPU. So finding the perfect balance of size, thermal performance and noise on ITX and HTPC systems has never been easy, until now!
The Thermalright AXP-100 is here! This latest creation by Thermalright is only a mere 58mm (2.28 inches) in height including the bundled TY-100 high performance PWM fan. This height provides almost full compatibility with HTPC and ITX cases on the market. Thermalright.com will also be displaying a full list of case compatibility on our product page.
Besides supporting all modern CPU sockets and platforms, system and main board compatibility is also no problem for the AXP-100. AXP-100’s small form factor has minimal interference with tall heatsink RAM, full length GPU cards and PCI-E slots.
The AXP-100 uses a jaw dropping number of six 6mm heatpipes, which usually only appears on mammoth tower heatsinks. The included Enhanced Fan Mount also allows power users to replace the included TY-100 100mm high performance PWM fan, with regular aftermarket 120mm fans or Thermalright’s award winning TY-100R series of 140mm fans. The Enhanced Fan Mount is also X/Y axis adjustable, providing the best component and PCI-E compatibility when you go XL on your fan!
The AXP-100 is the complete thermal upgrade solution for your next ITX and HTPC build. Use the best heatsink technology to bring a no compromises cooling experience to systems builders. Make your next system truly the coolest piece of tech there is.
