Weight & dimensions
| Radiator depth |
64 mm |
| Radiator height |
129 mm |
| Fan thickness |
25 mm |
| Radiator width |
282.5 mm |
| Tube diameter |
12 mm |
| Fan diameter |
120 mm |
| Tube length |
500 mm |
Technical details
| Supported processor sockets |
Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, LGA 1151 (Socket H4) |
| Coolant capacity |
1 L |
| Maximum airflow |
40.6 cfm |
| Pump motor speed (max) |
4800 RPM |
| Pump motor speed (min) |
1800 RPM |
| Radiator |
Y |
| Fan noise level (min) |
18.7 dB |
| Fan noise level (max) |
24.6 dB |
| Fan speed (max) |
1500 RPM |
| Fan speed (min) |
1000 RPM |
| Compatible products |
Riing 12 LED\nRL240\nC1000 |
| Fan |
Y |
| Number of fans |
2 fan(s) |
| Purpose |
Hard drive |
Power
| Fan power consumption |
2.4 W |
| Fan voltage |
12 V |
| Fan current |
0.2 A |
| Pump voltage |
8 - 24 V |
Thermaltake Pacific RL240 D5 Hard Tube Water Cooling Kit

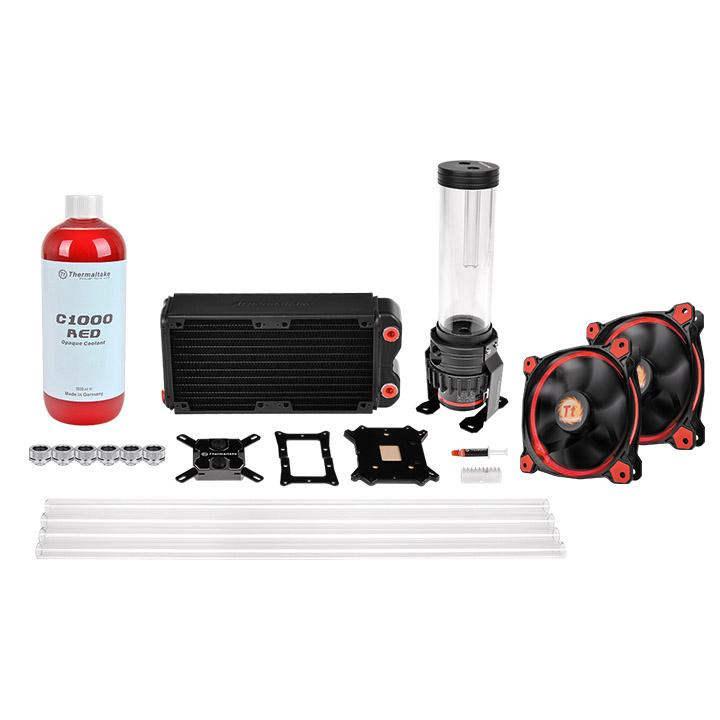

As part of its “hardcore” spirit towards the ultimate in custom PC water cooling, Thermaltake has launched the new Pacific RL240 D5 Hard Tube Water Cooling Kit. The kit is composed of one Pacific W1 CPU water block, one Pacific PR22-D5 pump and reservoir combo, one Pacific RL240 radiator, four V-Tubler PETG tubes, six Pacific G1/4 compression fittings (chrome), two Riing 12 LED red fans, one C1000 Opaque coolant red and other accessories. Together, these provide exceptional performance, unrivalled reliability, and styling to enthusiasts.
Tt LCS Certified” is the hallmark that ensures first-class performance from the best features and fitment. A certification exclusive to Thermaltake, it sets the benchmark for all true LCS chassis and is applied only to products that meet our stringent design standards for delivering what hardcore enthusiasts demand. The Tt LCS certification is a way for Thermaltake to designate to all power users the chassis which have been tested for best compatibility with extreme liquid cooling configurations.
Pacific W1 CPU Water Block
The W1 CPU water block is constructed with a copper base and anti-corrosive nickel plating to provide exceptional heat transfer and cooling performance. Fits all modern CPU sockets.
Pacific PR22-D5 Pump/Reservoir Combo
The PR22-D5 includes a 300ml reservoir and D5 pump to provide the perfect combination for proper water cooling circulation and capacity, manufactured from high quality POM and PMMA material.
Riing 12 High Static Pressure LED Radiator Fan Red
The patented LED Riing maintains color and brightness uniformity; the lighting effect is visible from all sides and angles. To produce impressive cooling performance, the Riing 12 LED fan is applied high-static pressure design. In addition, hydraulic bearing for silent operation guarantees ultra-low noise. The four corners of the Riing fan are also designed with anti-vibration pads to strengthen the stability during operation.
Pacific RL240 Radiator
With high-density fin design (FPI: 14), the 240mm radiator is optimized to accommodate high airflow and high air pressure with increased capacity and provides superior cooling performance to all components.
C1000 Opaque Coolant Red
Made in Germany, the non-flammable C1000 Opaque Coolant is a ready-to-use cooling solution with at least 3 years shelf life in airtight containers, providing great performance while preventing the entire cooling system – copper, brass, nickel, and aluminum – from corrosion.
Pacific G1/4 PETG Tube 16mm (5/8”) OD Compression Fittings (Chrome)
Six durable copper compression fittings allow proper connection to G1/4” ports to properly secure to cooling components.
V-Tubler PETG Tube 5/8” (16mm) OD 500mm (4 Pack)
Manufactured from premium PETG, the V-Tubler rigid tubing provides custom PC water cooling configurations with reliability and durability from end to end.
Remarkable Expansion
The Pacific RL240 D5 Hard Tube Water Cooling Kit provides multiple LCS components for PC enthusiasts to build the ultimate in custom configuration, allowing them to build up aesthetically-superior water cooling systems by incorporating externally-modular upgrades for their chassis.
