Ports & interfaces
| ATX Power connector (24-pin) |
Y |
| Floppy drive power connector |
1 |
| PCI Express power connectors (6-pin) |
Y |
| Number of SATA power connectors |
8 |
| Peripheral (Molex) power connectors (4-pin) |
10 |
Power
| Total power |
1500 W |
| Input current |
10 A |
| Power protection features |
Over current, Over voltage, Under voltage |
| Efficiency |
87% |
| Hold time |
16 ms |
Certificates
| Safety |
CE, CB, TUV, FCC, UL, CUL, BSMI |

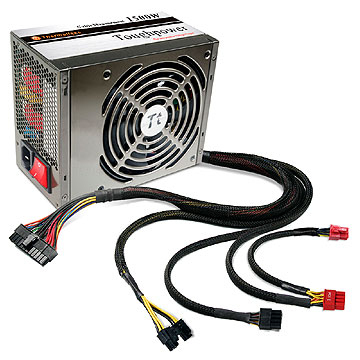

Toughpower 1500W C.M.
- Intel ATX 12V 2.3 and EPS 2.91 compatible
- Stable 1500W continuous output, peak power at 1600W (at 50℃ operating environment)
- Four 8pin and four 6pin PCI-E connectors design supports multiple high-end graphic card setup
- Support Dual core CPU, Quad core CPU, NVIDIA SLI and all Multi-Core GPU Technology
- Four independent +12V rails provides superior performance
(Total Combined load of +12V is 120A)
- Modularized Cable Management to eliminate clutter and improve airflow inside the case.
- Active Power Factor Correction (PF>0.99) and high efficiency (up to 87%).
- Industrial grade components (capacitor, transformer, etc)
- High reliability: MTBF>120,000 hours
- Quiet and reliable 14cm ball-bearing fan.
- Protections: Over Current, Over Voltage, Under Voltage, Over Temperature,
- Over Power, and Short-Circuit protection.
- Safety / EMI Approvals: CE, CB, TUV, FCC, UL, CUL, and BSMI certified.
