Technical details
| Pump motor speed (max) |
2950 RPM |
| Pump motor speed (min) |
2650 RPM |
| Pump motor speed |
2800 RPM |
| Number of fans |
2 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
Socket AM3, Socket AM3+, Socket AM2+, Socket AM2, Socket FM1 |
| Fan speed (max) |
2000 RPM |
| Fan speed (min) |
1200 RPM |
| Noise level |
27.36 dB |
| Fan connector |
4-pin |
| Maximum airflow |
81.32 cfm |
Design
| Radiator material |
Aluminium |
| Tube material |
Rubber |
| Water block material |
Copper |
Weight & dimensions
| Radiator width |
270 mm |
| Fan diameter |
120 mm |
| Tube length |
326 mm |
| Fan thickness |
25 mm |
| Radiator depth |
120 mm |
| Radiator height |
38.3 mm |
Power
| Pump voltage |
12 V |
| Fan current |
0.5 A |
| Fan voltage |
12 V |
| Pump current |
220 mA |

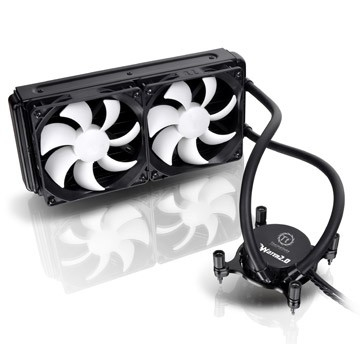

Pump (2800+-150 rpm), 2 x Fan (1200~2000 rpm), Radiator Aluminum, 27.36dBA
- Top of the line liquid cooler, equipped with Power and Performance. No Refills Needed.
- 240mm Radiator Doubles the Cooling Surfaceю
- Universal Socket Compatibilityю
Top of the line liquid cooler, Equipped with Power and Performance. No Refills Needed.
- High performance Copper base plate accelerates the heat conductivity.
- High reliability low profile pump provides quick liquid circulation lowering the temperature.
- Pre-filled coolant reduces the liquid replenishment hassle.
- Low evaporation tube decreases the loss of coolant effectively.
- The high-tech sealed circulation system prevents leaking issue.
240mm Radiator Doubles the Cooling Surface
- Powerful fan blows the heat of radiator out to the chassis to maximize cooling performance.
- PWM control function fan spins between 1200~2000rpm, can be adjusted on fan control software.
- Easy and simple installation methods.
- Fan control software (included), users can control, monitor and customize according to their desires.
