Weight & dimensions
| Radiator depth |
139 mm |
| Radiator height |
27 mm |
| Radiator width |
313 mm |
| Fan diameter |
140 mm |
| Tube length |
326 mm |
| Fan thickness |
25 mm |
Design
| Water block material |
Copper |
Technical details
| Pulse-width modulation (PWM) support |
Y |
| Fan connector |
5-pin |
| Bearing technology |
Hydraulic |
| Maximum airflow |
40.6 cfm |
| Minimum airflow |
22.14 cfm |
| Fan noise level (min) |
18.5 dB |
| Fan noise level (max) |
26.4 dB |
| Number of fans |
2 fan(s) |
| Radiator |
Y |
| Fan |
Y |
| Supported processor sockets |
Socket AM3, Socket AM3+, Socket AM2+, Socket FM2, Socket AM2, LGA 2011-v3 (Socket R), LGA 1151 (Socket H4), Socket FM1 |
| Fan speed (max) |
1500 RPM |
| Fan speed (min) |
400 RPM |
Power
| Fan voltage |
12 V |
| Pump current |
175 mA |
| Pump voltage |
12 V |
800-1500 RPM (PWM), 40001000 RPM (LNM), 12 V, 175 mA, 18.5-26.4 dB-A, 22.14-40.6 CFM

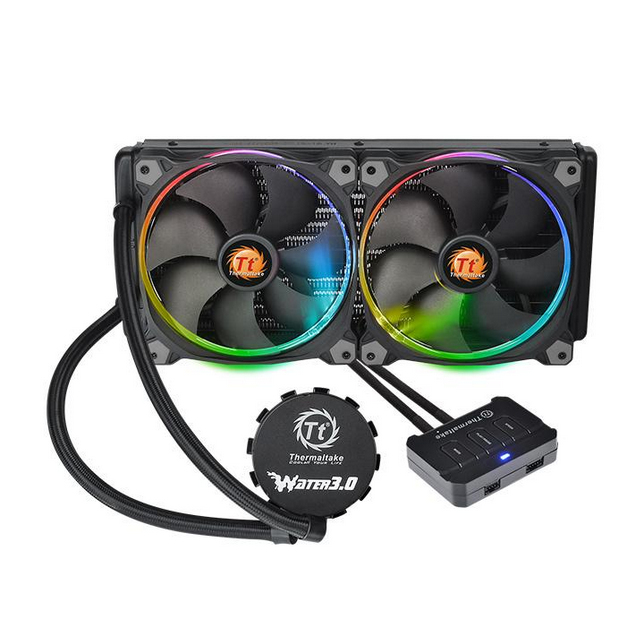

Designed to exceed enthusiast’s expectations, the Thermaltake Water 3.0 Riing RGB 280 comes with dual 140mm high-static pressure patented LED fans with a large surface radiator, high performance waterblock and pump for ultimate CPU cooling. The built-in Riing fan adopted PWM fan, compression blades and hydraulic bearings that guarantee superior cooling performance and quiet operation. One simple upgrade allows users to enjoy better cooling performance and greater CPU protection!
Tt LCS Certified
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.
Riing 14 LED RGB 256 Colors Radiator Fan
Featuring high-static pressure design, exceptional cooling performance and ultra-silent operation, the patented circular 256 multicolored 140mm RGB fan utilized PWM fan, concentrated compression blade, hydraulic bearings, wind blocker frame and anti-vibration mounting system. Moreover, the built-in LED ring can maintain color and brightness uniformity. The lighting is visible from all sides and angles.
Smart Fan Controller
A self-contained fan controller can switch between 5 LED modes including solid colors of red, blue, white, green or disable and cycle through 256 colors. Play/Pause functions allow users to cycle colors (color remains unchanged even after the PC has been turned off or rebooted) with speed control options reduce noise even more all from your fingertips.
High Efficiency Radiator
Special designed 280mm large surface radiator not only doubles the cooling surface, but also supports up to 4 x 140mm fans for additional heat dissipation.
High Performance Waterblock and Durable Sleeved Cable
The high performance copper base plate accelerates the heat conductivity. The pre-refilled coolant reduces any stress from liquid replenishment hassle. Additionally, the reinforced sleeved cable delivers the best durability and prevents the tubing from any damages.
High Reliability Pump
The high quality and reliable pump enables the maximum amount of water circulation, keeping the copper plate continuously cool. The low evaporation tube effectively decreases the loss of coolant; therefore no refill is either needed or required.
Simple Setup
Featuring the latest cooling performance, the self-contained design of the Thermaltake Water 3.0 Riing RGB Series provides an easy installation system and a totally maintenance-free operation, requiring only the minimum amount of space in the chassis.
