Lens system
| Macro ratio |
1:2.56 |
| Maximum aperture number |
22 |
| Focal length range (f-f) |
10 - 17 mm |
| Component for |
SLR |
| Minimum aperture number |
3.5 |
| Diagonal angle of view (max) |
180 ° |
| Diagonal angle of view (min) |
100 ° |
| Closest focusing distance |
0.14 m |
| Number of diaphragm blades |
6 |

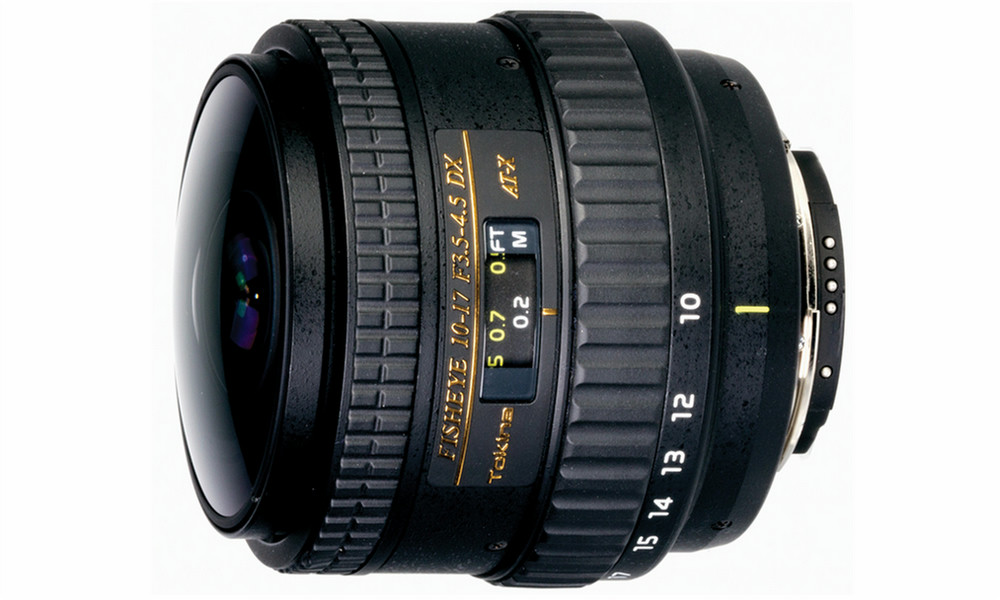

AT-X 107 AF DX NH Fisheye Nikon, AF 10-17mm f/3.5 - 4.5
The Tokina AT-X 107 NH is a fish-eye lens that gives the digital photographer an approximate 180° field of view with dramatic curvature of field or “fish-eye” effect. The AT-X 107 NH only differs from the AT-X 107 DX in that the built-in hood as been removed allowing for a wider image area and more coverage on full-frame sensor (FX) cameras.*
The front element of the AT-X 107 DX has a newly formulated WR or “Water Repellent" optical coating on the glass. This new coating makes marks such as spots left by water or finger-prints much easier to clean than standard multi-coating. With the built-in hood removed the lens also fits in a wider variety of underwater housings.
The rear optical group of the lens contains 1 SD (Super-Low Dispersion) glass element to reduce the number of elements (pieces of glass) in the optical design in order to make the lens more compact, light-weight and faster focusing.
*Full corner to corner image can be achieved on an FX camera between approx. 14.5-17MM depending on the camera model, at 10-14MM there is a semi-circular view.
