Hard drive
| Hard drive interface |
Serial ATA III |
| Drive device, buffer size |
8 MB |
| Bytes per sector |
512 |
| Cylinders |
1 |
| Hard drive capacity |
500 GB |
| Hard disk average seek time |
22 ms |
| Track to track seek time (read/write) |
2 ms |
| Hard drive speed |
5400 RPM |
| Hard disk number of heads |
2 |
Operational conditions
| Operating vibration |
1 G |
| Non-operating vibration |
5 G |
| Operating shock |
400 G |
| Non-operating shock |
900 G |
Other features
| Acoustic pressure emissions |
21 dB |
Power
| Input voltage |
5 V |
| Power consumption (PowerSave) |
0.15 W |
| Power consumption (write) |
1.5 W |
| Power consumption (read) |
1.5 W |
| Power consumption (idle) |
0.55 W |

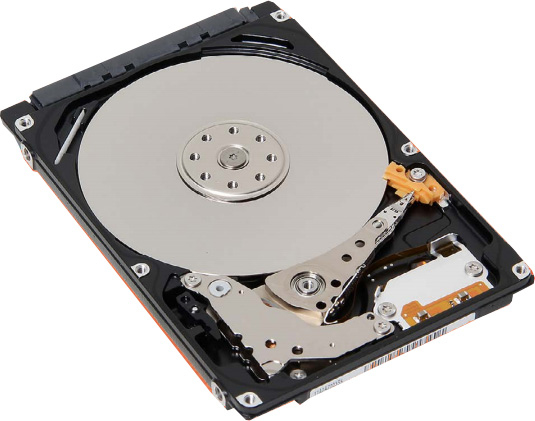

500GB, SATA 3.0, 5400 rpm, 6.35 cm (2.5 ")
The MQ01ABF series offers up to 500GB in the slim 7mm height form factor. The 5,400 RPM SATA HDD has been engineered to deliver high performance, combined with low energy consumption efficiency in Ultrabooks and high-end multimedia devices with data intensive applications.
Forming part of a series of advanced format technology HDDs, the MQ01ABFxxx is developed to deliver a higher internal transfer rate with industry-leading recording density, making it ideally suited to media intensive applications.
The new family of sleek HDDs features the following products; the MQ01ABF050, the MQ01ABF032, the MQ01ABF025, all with capacities of 500GB, 320GB and 250GB respectively. All drives are free from halogen, antimony trioxide and red phosphorus.
<b>Product Features</b>
- Up to 500GB capacity
- Extra slim design with 7.0 mm height
- 5,400 RPM
- Excellent power efficiency
- Industry-leading recording density
