Technical details
| Seasonal efficiency rating (cooling) (SEER) |
9.1 |
| Operating temperature (heating) (T-T) |
-15 - 24 °C |
| Heating capacity in watts (nominal) (Average heating season) |
3200 W |
| Compressor type |
Rotary |
| Seasonal efficiency rating (heating) (SCOP) (Average heating season) |
5.2 |
| Cooling capacity in watts (nominal) |
2500 W |
| Cooling capacity in watts (min) |
550 W |
| Cooling capacity in watts (max) |
3500 W |
| Heating capacity in watts (min) |
450 W |
| Heating capacity in watts (max) |
5800 W |
| Operating temperature (cooling) (T-T) |
-10 - 46 °C |
| Type |
Air conditioner outdoor unit |
| Refrigerating medium |
R410A |
| Hose length (max) |
25 m |
| Built-in display |
N |
| Inverter technology |
Y |
Outdoor unit
| Outdoor unit width |
630 mm |
| Outdoor unit depth |
300 mm |
| Outdoor unit height |
800 mm |
| Outdoor unit weight |
41000 g |
| Heating airflow (outdoor unit) |
1800 m³/h |
| Cooling airflow (outdoor unit) |
1800 m³/h |
| Outdoor units quantity |
1 |
| Noise level (outdoor unit) |
62 dB |
Power
| Power consumption (cooling) (min) |
110 W |
| Power consumption (cooling) (max) |
900 W |
| Power consumption (heating) (min) |
90 W |
| Power consumption (heating) (max) |
1650 W |
| Energy efficiency class (cooling) |
A+++ |
| Energy efficiency class (heating) (Average heating season) |
A+++ |
| Current |
10 A |
Additionally
| Cooling energy efficiency |
5.15 |
| Heating energy efficiency |
5.52 |
| Remote controlled |
N |
2500/3200 W, A+++/A+++, 5.15 EER, 5.52 COP, 9.1 SEER, 5.2 SCOP, 1800 m3/h, 46 - 62 dB, 41000 g
- OUTDOOR UNIT.
- DC HYBRID INVERTER.
- R-410A.
- HIGH EFFICIENCY.
- COMPACT DESIGN.

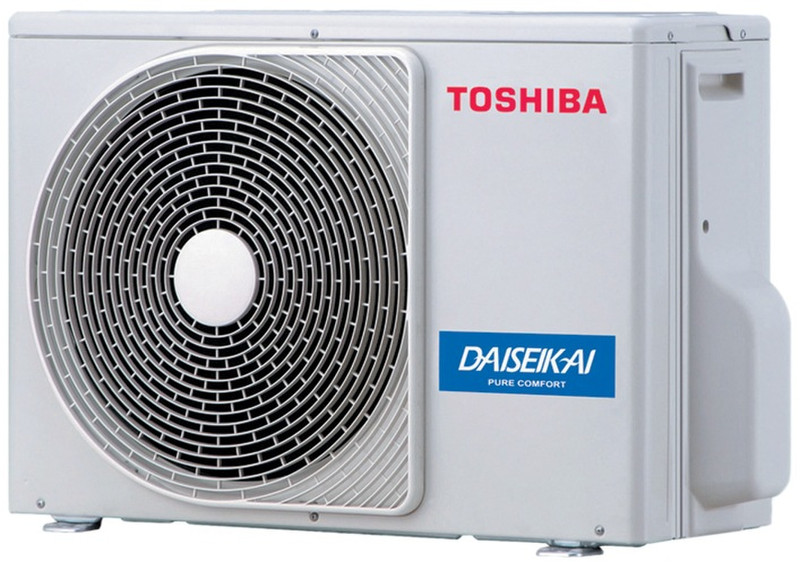

The compact outdoor units of Toshiba can be installed easily at any facade or placed on a suitable space on the roof, balcony etc.. The design is simple and unobtrusive and fits perfectly into the surroundings. The heart of the Toshiba inverter systems is developed by Toshiba to operate very ecologically hybrid inverter-driven compressor with automatic switching between pulse widths and heights modulation (for efficient operation at part load). large energy savings and exceptional climate control values realized.
- Outdoor unit with CFC-free refrigerant R410A.
- Housing made of galvanized sheet steel with cream white paint compact design.
- Speed-controlled precision-balanced twin-rotary compressors, silenced and vibration-free sealed for silent operation and seamless control.
- Air-cooled, large-scale bend heat exchanger design for small footprint.
