Security
| Authentication method |
MAC |
| VPN tunnels quantity |
5 |
| System event log |
Y |
| Firewall |
Y |
| URL filtering |
Y |
| Filtering |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
Networking
| Port forwarding |
Y |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11b) |
85 dBmW |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11g) |
72 dBmW |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) |
69 dBmW |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported network protocols |
PPPoE/DHCP |
Wireless LAN features
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard |
IEEE 802.11ac |
| WLAN data transfer rate (max) |
433 Mbit/s |
| WLAN data transfer rate (first band) |
300 Mbit/s |
| WLAN data transfer rate (second band) |
433 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
WAN connection
| Ethernet WAN |
Y |
| 3G/4G USB modem compatibility |
N |
| DSL WAN |
N |
| SIM card slot |
N |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
5 dBi |
| Antennas quantity |
3 |
| Detachable antenna(s) |
N |
Management features
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| WPS push button |
Y |
Performance
| Firmware upgradeable |
Y |
| Memory card slot(s) |
N |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |
802.11ac/a/b/g/n, 2.4GHz/5GHz, up to 750Mbps, 4x1000Mbps LAN, 1000Mbps WAN, 3x 5dBi antennas

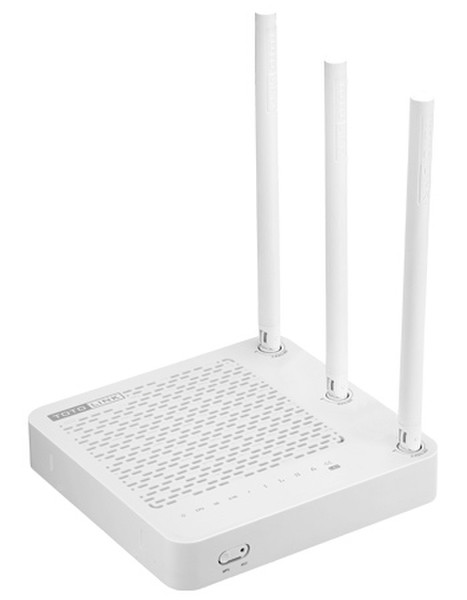

A1004 is a Wireless Dual Band Gigabit Router which complies with the most advanced 802.11ac standard and can deliver Wi-Fi speed up to 750Mbps. Featured by simultaneous dual-band and three external high gain antennas, it provides a stable network connection for Internet access with less intereference. Plus, Four gigabit Ethernet ports make data sharing so speedy across your network. Generally, A1004 is the best choice for home and small office use.
Excellent Wi-Fi Speed
A1004 adopts the next generation 802.11ac technology and offers wireless speed up to 750Mbps, optimized for music, HD video and online gaming.
Simultaneous Dual Band
With 2.4GHz (300Mbps) and 5GHz (433Mbps) working concurrently, A1004 ensures high stability, less interference and high data rate for Wi-Fi connections.
Full Gigabit Wired Connections
One gigabit WAN port and four gigabit LAN ports offers 10x faster speed than fast Ethernet connections. Enjoy your ultrafast wired network.
Multiple Wireless Network for Access Control
More than one Wi-Fi networks can be added to provide secure Wi-Fi access for guest sharing your home or office network.
Simple Remote Access with VPN
With VPN Sever supported, 5 PPTP Tunnels are provided to secure access to your home network, protecting your privacy and family safety while online.
Parental Control
Wi-Fi Scheduler helps parents to set up time schedule for Wi-Fi network access, effectively preventing children caught in the Web, better for parental control.
Flexible Bandwidth Management
Smart QoS is offered to assign bandwidth equally for each connected devices, making bandwidth control more easy and flexible.
