Other features
| Fiber type |
9/125 µm |
| Data link protocols |
CSMA/CD, TCP/IP |
| Full duplex |
Y |
| Interface |
LC |
| Power requirements |
3.3V |
| Compliance industry standards |
IEEE 802.3z |
Operational conditions
| Storage temperature (T-T) |
-40 - 80 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating relative humidity (H-H) |
10 - 90% |
Performance
| Maximum transfer distance |
10000 m |
| Wavelength |
1310 nm |
Additionally
| Transfer rate (Mbps) |
1280 Mbit/s |
| Wireless technologies |
Wired |
| Operating temperature range (T-T) |
0 - 70 °C |

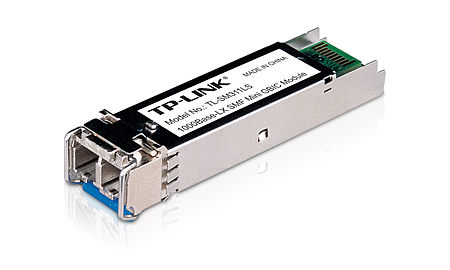

TL-SM311LS IEEE 802.3z, CSMA/CD, TCP/IP, 9/125 um, 1.25Gbps, 10km, LC
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance, attached to our managed/web smart switches. They can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
