Management features
| Multicast support |
Y |
| System event log |
Y |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
N |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| IGMP snooping |
Y |
| Auto MDI/MDI-X |
N |
| Rate limiting |
Y |
| Flow control support |
N |
| DHCP client |
Y |
| DHCP server |
N |
| Link aggregation |
Y |
| IP routing |
N |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
N |
| Full duplex |
N |
Ports & interfaces
| SFP/SFP+ slots quantity |
4 |
| Basic switching RJ-45 Ethernet ports quantity |
4 |
| Combo SFP ports quantity |
4 |
Security
| Static port security |
Y |
| MAC address filtering |
Y |
| Access Control List (ACL) |
Y |
| SSH/SSL support |
Y |
Design
| Safety |
CSA/CUS, TUV/GS, CB |
Other features
| Wi-Fi |
Y |
| Power supply type |
100-240VAC 50-60 Hz |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Jumbo Frames support |
Y |
| Wireless technologies |
Wired |

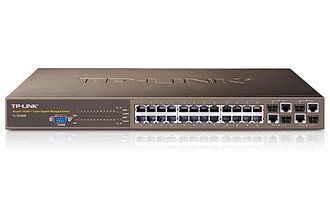

TL-SL5428 - 24-Port 10/100Mbps + 4-Port Gigabit L2 Managed Switch
Designed for workgroups and departments, TL-SL5428 from TP-Link provides wire-speed performance and full set of layer 2 management features. It delivers maximum throughput where you need it — to high-performance workgroups at the edge of the network, or as a backbone for Fast Ethernet switches and high-speed servers in demanding small networks.
Virtual Stackable
- IP Clustering allows up to 32 TL-SG5426/TL-SL5428 switches to be managed by a single IP, regardless of geographical locations. With all units identified by a single IP address, the stack could be configured, monitored, maintained as a single object.
Tra¬ffic running across units in this virtual stack utilizes full-duplex interfaces and network wires, eliminating costly and cumbersome cables, minimizing the impact of any single point of failure.
Enterprise Level Manageability and Resiliency
Standard management features are included such as SNMP v1/v2c/v3, RMON, intuitive web-based GUI, industry standard Command Line Interface(CLI).
With link aggregation, spanning tree protocol and virtual stack, a highly intelligent and scalable topology could be established, fulfilling the enterprise customers’ requirement of building a unified, resilient network.
Comprehensive Security Strategy
- Access Control Lists (L2/L3/L4) restrict access to sensitive network resources by denying packets based on source and destination MAC addresses, IP addresses, TCP/UDP ports. This is done by hardware, so switching performance would not be compromised.
Moreover, Dynamic ARP Inspection which protects the network from "man-in-the-middle" attacks, IP Source Guard which prevents IP spoofing attacks such as DoS, together with 802.1x port-based authentication provide robust security to the network.
Optimized Voice and Video Applications
- To integrate voice, data and video service on one network, TL-SG5426 applies rich QoS policies. Administrator can designate the priority of the traffi¬c based on a variety of means including IP or MAC address, TCP or UDP port number, etc, so voice and video are always clear, smooth and jitter free.
For other multimedia-on-demand application such as IPTV, TL-SG5426 provides advanced features for easy stream management. For example, IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
