Data transmission
| Store-and-forward |
Y |
| Maximum data transfer rate |
48 Gbit/s |
Networking
| Link aggregation |
Y |
| IP routing |
Y |
| Spanning tree protocol |
Y |
| Port mirroring |
Y |
| Auto MDI/MDI-X |
Y |
| Rate limiting |
Y |
| Flow control support |
Y |
| DHCP client |
Y |
| Full duplex |
Y |
Other features
| Installed ports |
24 |
| Connectivity LEDs |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

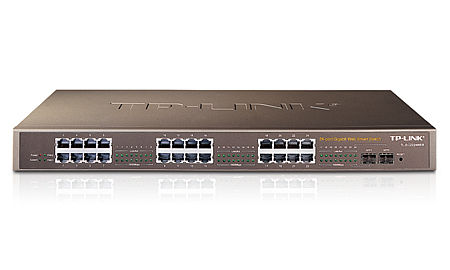

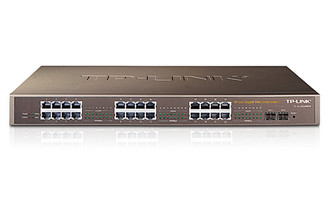

24-port Gigabit Web Smart Switch
The TL-SG2224WEB Pure-Gigabit Web Smart Switch fully complies with IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standards. It provides 24 10/100/1000Mbps UTP/STP RJ45 ports with auto-MDI/MDIX and 2 SFP shared expansion slots supporting MiniGBIC modules. It also provides Web-based management functions including the system, port network, VLAN, Trunk, Priority and security etc.Its standard 19-inch rack-mountable steel case and intelligent management makes it is suitable for small, middle and large networks.
