Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Maximum data transfer rate |
0.1 Gbit/s |
Other features
| Network cabling |
Cat 3/4/5/5.5e |
| Connectivity LEDs |
Y |
| Bandwidth |
15.6 Gbit/s |
| Power supply type |
50/60Hz |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| SFP module slots quantity |
1 |
| SFP/SFP+ slots quantity |
1 |
Protocols
| Supported network protocols |
CSMA/CD, TCP/IP |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Wireless technologies |
Wired |

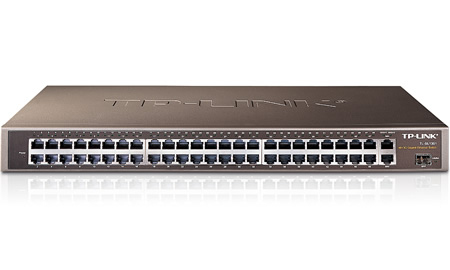

48+3G Unmanaged Gigabit-Uplink Switch
The TL-SL1351 Gigabit Switch provides 48 10/100M Auto-Negotiation RJ45 ports and 2 10/100/1000M Auto-Negotiation RJ45 ports, all RJ45 ports SupportAuto-MDI/MDIX function, 1 SFP independence expansion slots supporting MiniGBIC. TL-SL1351 Gigabit Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 1000M solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing the greater flexibility, installation convenience.
- Supportthe port N-Way Auto-Negotiation ,Store-and-Forward.
- 100% Data filtering rate eliminates all error packets.
- Support MAC address learning.
- Support IEEE 802.3x flow control for full duplex mode and backpressure for half duplex mode.
- Standard 19inch rack-mountable steel case.
