Data transmission
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Maximum data transfer rate |
1 Gbit/s |
Other features
| Connectivity LEDs |
Y |
| Bandwidth |
3.6 Gbit/s |
Networking
| Auto MDI/MDI-X |
Y |
| Full duplex |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
9 |
| Copper ethernet cabling technology |
100BASE-TX, 1000BASE-T, 10BASE-T |
| Gigabit Ethernet (copper) ports quantity |
1 |
Protocols
| Supported network protocols |
CSMA/CD, TCP/IP |
Operational conditions
| Operating temperature (T-T) |
32 - 104 °F |
Additionally
| Wireless technologies |
Wired |

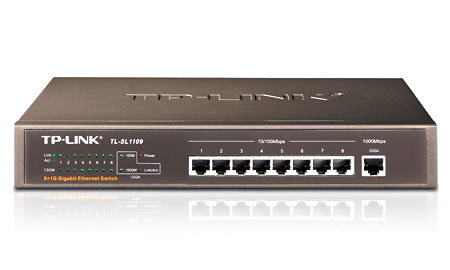

TL-SL1109 - 8+1G Unmanaged Gigabit-Uplink Switch
The TL-SL1109 Gigabit Switch provides 8 10/100M Auto-Negotiation RJ45 ports and 1 10/100/1000M Auto-Negotiation RJ45 ports, all RJ45 ports SupportAuto-MDI/MDIX function. TL-SL1109 Gigabit Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 1000M solutions. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing the greater flexibility, installation convenience.
