Data transmission
| Store-and-forward |
Y |
| Supported data transfer rates |
10/100/1000 Mbps |
| Switching capacity |
5.6 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
Networking
| Port mirroring |
Y |
| Broadcast storm control |
Y |
| Link aggregation |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
10 |
| SFP module slots quantity |
1 |
| SFP/SFP+ slots quantity |
1 |
| Gigabit Ethernet (copper) ports quantity |
1 |
Security
| Access Control List (ACL) |
Y |
Operational conditions
| Operating temperature (T-T) |
32 - 104 °F |
Additionally
| Wireless technologies |
Wired |

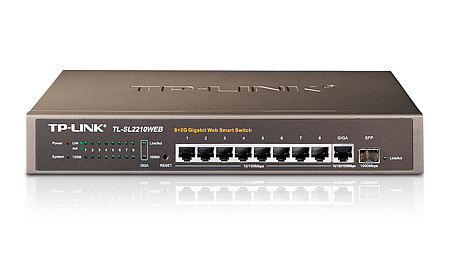

TL-SL2210WEB - 8+2G Gigabit-Uplink Web Smart Switch
The TL-SL2210WEB Gigabit-Uplink Web Smart Switch fully complies with IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standards.It provides 8 10/100Mbps and 1 10/100/1000Mbps UTP/STP RJ45 ports with auto-MDI/MDIX and 1 SFP independence expansion slots supporting MiniGBIC modules. It also provides Web-based management functions including the system, port network, VLAN, Trunk, Priority and security etc.Its standard 19-inch rack-mountable steel case and intelligent management makes it is suitable for small, middle and large networks.
