Data transmission
| Store-and-forward |
Y |
| Switching capacity |
18 Gbit/s |
| Maximum data transfer rate |
1 Gbit/s |
| Supported data transfer rates |
10/100/1000 Mbps |
Networking
| Port mirroring |
Y |
| Auto MDI/MDI-X |
Y |
| Link aggregation |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
9 |
Security
| Access Control List (ACL) |
Y |
Operational conditions
| Operating temperature (T-T) |
32 - 104 °F |

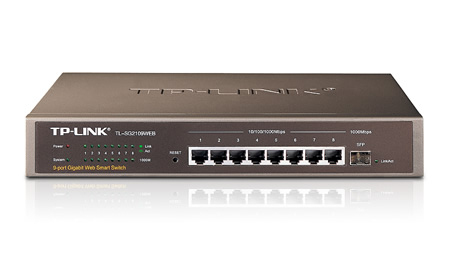

TL-SG2109WEB - 9-port Gigabit Web Smart Switch
The TL-SG2109WEB Pure-Gigabit Web Smart Switch fully complies with IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standards. It provides 8 10/100/1000Mbps UTP/STP RJ45 ports with auto-MDI/MDIX and 1 SFP independence expansion slots supporting MiniGBIC modules. It also provides Web-based management functions including the system, port network, VLAN, Trunk, Priority and security etc.Its standard 19-inch rack-mountable steel case and intelligent management makes it is suitable for small, middle and large networks.
