Performance
| Processor frequency |
1400 MHz |
| Linux operating systems supported |
Y |
| Processor cores |
2 |
| Built-in processor |
Y |
| Mac operating systems supported |
Y |
Networking
| Port forwarding |
Y |
| Receiver sensitivity |
5GHz:\n11a 6Mbps: -94dBm\n11a 54Mbps: -76dBm\n"11ac VHT20_MCS0: -93dBm\n11ac VHT20_MCS8:-69dBm\n11ac VHT40_MCS0: -90dBm\n11ac VHT40_MCS9: -64dBm\n11ac VHT80_MCS0: -87dBm\n11ac VHT80_MCS9: -61dBm"\n\n\n2.4GHz:\n11g 6Mbps: -95dBm\n11g 54Mbps: -78dBm\n"11n HT20_MCS0: -95dBm\n11n HT20_MCS7: -75dBm\n11n HT20_MCS8: -70dBm\n11n HT40_MCS0: -92dBm\n11n HT40_MCS7: -72dBm\n11n HT40_MCS9: -66dBm" |
| Supported WAN type |
Dynamic IP/Static IP/PPPoE/\nPPTP(Dual Access)/L2TP(Dual Access) |
| Guest access |
Y |
| Frequency range |
2.4 - 5 GHz |
Ethernet LAN features
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
Ports & interfaces
| WAN connection |
Ethernet (RJ-45) |
| USB version |
3.0 (3.1 Gen 1) |
| USB ports quantity |
2 |
| DC-in jack |
Y |
Security
| VPN support |
PPTP, OpenVPN |
| IP address filtering |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Supported protocols |
IPv4, IPv6 |
Antenna
| Antenna type |
Internal & external |
| Antennas quantity |
8 |
| Frequency band |
2.4 & 5 GHz |
Packaging content
| Quick start guide |
Y |
| Quick installation guide |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
5 |

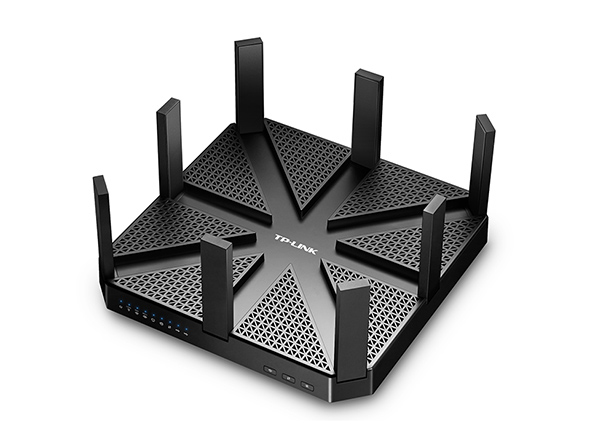

802.11ad, 7200Mbps, 2.4GHz/5GHz, MU-MIMO, IPv4/IPv6, CPU 1.4GHz Dual-Core, Black
802.11ad
Faster Than Anything You Have Ever Seen
Talon AD7200 uses the latest, most powerful wireless technology to provide speeds of up to 4600Mbps on the groundbreaking 60GHz Wi-Fi band, completely revolutionizing your definition of fast.
More Wi-Fi For More Devices
The AD7200 uses Multi-Band technology to run three distinct Wi-Fi bands at once, with the combined Wi-Fi speed of up to 7200Mbps, creating a network that can connect to more devices without a trade-off in performance.
Smart Connect ensures the stability and performance of all of your devices by dynamically identifying and assigning them to the fast available band. (Coming Soon)
Multiple Connections for Nonstop Entertainment
Wireless AC and Multi-User MIMO Technologies allow the AD7200 to serve multiple devices at the same time, providing speeds that are up to 3X faster for all devices on the 2.4GHz and 5GHz bands.
Power at the Heart of Your Network
A 1.4GHz dual-core processor powers through demanding tasks when numerous users are connected to the network at the same time. This allows everyone in your home to surf, stream, and game simultaneously while enjoying outstanding performance.
Dynamic Wi-Fi Coverage
The Wireless AD Technology comes with the distinct, high-performance 60GHz Wi-Fi band that dramatically increase speed and reduce interference, what's more, the additional Wireless AC allows the router to provide strong and stable 5GHz & 2.4GHz Wi-Fi and full wireless coverage for your entire home.
Antenna Array for More Targeted Wi-Fi
32 Antennas formed a special Antenna array of 60GHz band to ensure that Wi-Fi signals are concentrated towards your in room devices, focusing the data transmission to where you need it most.
Comprehensive Connectivity
To match the unprecedented Wi-Fi speed, the AD7200 uses dual USB 3.0 ports and four Gigabit Ethernet ports to transfer data at lightning-fast speeds. This allows all of your wired devices to achieve peak performance.
