Security
| Firewall security |
NAT/DoS/SYN |
| VPN tunnels quantity |
10 |
| Firewall |
Y |
| URL filtering |
Y |
| MAC address filtering |
Y |
Networking
| Switching protocols |
IPv6/IPv4 |
| Port forwarding |
Y |
| Routing protocols |
RIP-1, RIP-2 |
Ethernet LAN features
| Cabling technology |
10/100Base-T(X) |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Ethernet LAN interface type |
Fast Ethernet |
Software
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
Management features
| Universal Plug and Play (UPnP) |
Y |
| Quality of Service (QoS) support |
Y |
| Reset button |
Y |
| Web-based management |
Y |
Other features
| WLAN data transfer rates supported |
300 Mbit/s |
| Mobile network connection |
N |
| xDSL connection |
Y |
| Bandwidth (first) |
2.4 GHz |
| Frequency range |
2.4 - 2.4385 GHz |
| Rack mounting |
N |
| Input current |
0.85 A |
Protocols
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| WLAN data transfer rate (max) |
300 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Antenna
| Antenna type |
External |
| Antenna gain level (max) |
5 dBi |
| Antenna connector type |
RP-SMA |
| Transmit power |
0 - 20 dBmW |
| Antennas quantity |
2 |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Filtering |
MAC |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
3 |
300Mbps, 2.4 - 2.4835 GHz, 20 dBm, Blue
All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network.
What This Product Does

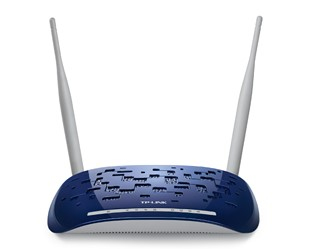

TP-LINK’s TD-W8960N 300Mbps Wireless N ADSL2+ Modem Router is an incredibly robust all-in-one device that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. With the TD-W8960N, you can easily create a secure wireless network and share a high-speed internet connection while access to shared files, music, photos, and printers with multiple computers. What’s more, this all-in-one device allows for two different connection types: ADSL or Ethernet WAN, giving users the flexibility to access the Internet via whichever method is most convenient.
All-in-One Device-Clear up your desktop!
The TD-W8960N does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, 4-port switch and 300Mbps wireless N access point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connection.
300Mbps Wireless-Incredible Wireless Experience
With 300Mbps 802.11n wireless and 4 Megabit LAN ports, the TD-W8960N is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.
Interchangeable LAN/WAN Port - Versatile Connectivity
The TD-W8960N supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
IPSec VPN- Virtually Impregnable
Having the IPSec VPN (site-to-site) function, the TD-W8960N is no longer just a wireless ADSL modem router, it can also works as a VPN gateway, which support up to 10 IPSec VPN tunnels simultaneously. VPN (Virtual Private Network) function can create encrypted tunnels between the company's network and the remote users. These tunnels use virtual connections instead of the dedicated, real-world connection such as leased line. Then users can allow for complete data privacy for the access and exchange of user's most sensitive data from home to corporate network or between remote branch offices safely with TD-W8960N.
IP QoS－Control Bandwidth Reasonably
TD-W8960N supports IP QoS (Quality of Service), allowing optimum utilization of bandwidth and offering bandwidth control over congestion, preventing bandwidth abuse. In this way, users of a small network receive committed and specific bandwidth, preventing non-critical applications from degrading network performance.
Easy To Use
Even novice users can easily setup their networking products. The device comes with a CD with an Easy Setup Assistant that leads you through the setup process step-by-step, and even helps with wireless network settings and security configurations.
WPS-One Button Security
To setup their network's security encryption, users need simply to press the "WPS" button on their TD-W8960N, then push the "WPS" button or enter the router's PIN Code in the wireless client, and it will automatically establish a WPA secure connection. Not only is this faster than normal security setups but more convenient in that users don't need to remember a password!
*All the above information applies to TD-W8960N 5.0 ONLY.
