Protocols
| DHCP server |
Y |
| DHCP client |
Y |
| DMZ support |
Y |
Management features
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Software
| Mac operating systems supported |
Y |
Ports & interfaces
| RJ-11 ports quantity |
1 |
| DC-in jack |
Y |
Other features
| Frequency range |
2.4 - 2.4385 GHz |
| USB version |
2.0 |
| USB ports quantity |
1 |
| xDSL connection |
Y |
| Input current |
1 A |
| Rack mounting |
N |
| Bandwidth (first) |
2.4 GHz |
| Mobile network connection |
N |
Antenna
| Antennas quantity |
2 |
| Antenna type |
External |
| Transmit power |
0 - 20 dBmW |
| Antenna connector type |
RP-SMA |
| Antenna gain level (max) |
5 dBi |
Wireless LAN features
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| WLAN data transfer rate (max) |
300 Mbit/s |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Security
| MAC address filtering |
Y |
| URL filtering |
Y |
| Firewall |
Y |
| Firewall security |
NAT/DoS/SYN |
Networking
| Routing protocols |
RIP-2, RIP-1 |
| Port forwarding |
Y |
| Switching protocols |
IPv6/IPv4 |
Additionally
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| Ethernet LAN connection |
Y |
| AC adapter bundled |
Y |
| Filtering |
MAC |
300Mbps, 2.4 - 2.4835 GHz, 20 dBm, White
All-in-One Device: ADSL2+ Modem, NAT Router, Switch and Wireless N Access Point
2.4GHz, IEEE802.11b/g/n, up to 300Mbps data transfer rates
USB Port for Storage Sharing, Printer Sharing, 3G Modem Sharing, FTP Server and Media Server
Supports the latest Internet Protocol IPv6 to future-proof your network
Ethernet WAN (EWAN) offers another broadband connectivity option for connecting to Cable, VDSL or Fiber modems
Guest Network Access provides secure Wi-Fi access for guests sharing your home or office network.
<b>What This Product Does</b>

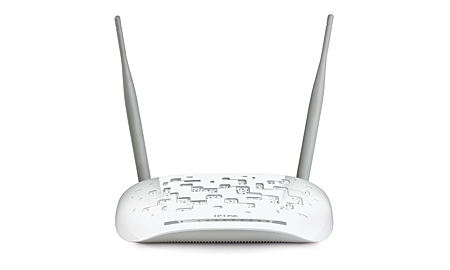

TP-LINK’s TD-W8968 300Mbps Wireless N USB ADSL2+ Modem Router is an incredibly robust all-in-one device allowing users to access high-speed internet connection via ADSL or Ethernet WAN (EWAN) using its interchangeable LAN/WAN port and share it wirelessly at 300Mbps wireless 802.11n speeds. With its multi-function USB port, users can share printers, files and play media across the local network or access files from attached USB storage across the internet using the TD-W8968’s FTP server function.
<b>Multifunction USB Port - Easy Sharing</b>
Using the TD-W8968’s multi-functional USB 2.0 port, users can share printers, files, 3G modem or play media either throughout the network at home with several different computers or even away, using the device’s FTP server functions so that you never have to part with your files.
<b>Interchangeable LAN/WAN Port - Versatile Connectivity</b>
The TD-W8968 supports ADSL or Ethernet WAN connections (EWAN) that allow users to have the flexibility of different Internet connections among ADSL, cable or fiber modem using its interchangeable LAN/WAN port. This unique feature makes it easier when users need to change to fiber or cable services when necessary.
<b>All-in-One Device - Clear up your desktop!</b>
The TD-W8968 does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, switch and 300Mbps wireless access point, this device eliminates the need to purchase multiple devices to access and share a high-speed wireless Internet connection.
<b>300Mbps Wireless - More Power to You</b>
With 300Mbps 802.11n wireless and 4 Megabit LAN ports, the TD-W8968 is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.
<b>IP QoS – Efficient Bandwidth Control</b>
IP QoS allows network administrators to allot a specific amount of available bandwidth to each network connected device simply by identifying it by its IP address, ensuring that those devices with critical tasks always have enough bandwidth and preventing any one device from hoarding bandwidth from the rest of the users on the network.
<b>IPv6 Ready</b>
This device supports IPv6, which is foundational to the next generation Internet and enables a range of new services and improved user experiences.
