Performance
| Vertical beam width |
9 ° |
| Horizontal beam width |
360 ° |
| Antenna gain level (max) |
15 dBi |
| Impedance |
50 Ω |
| Frequency band |
2.4 - 2.5 GHz |
Features
| Antenna type |
Omni-directional antenna |
| Antenna connector type |
N-type |
| Polarization |
Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) |
2.0 |
| Purpose |
Outdoor |

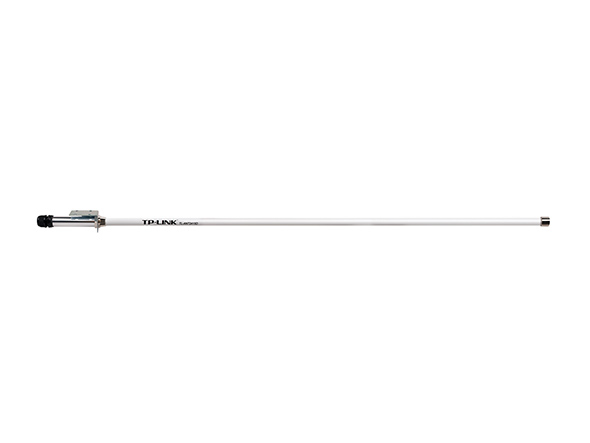

2.4GHz, 15dBi, Outdoor, Omni-directional
Outdoor omni-directional antenna TL-ANT2415D operates in the 2.4-2.5 GHz band and provides 15dBi omni-directional operation, which largely extends the wireless range and delivers much better wireless performance. The antenna offers the N female connector guaranteeing wider compatibility with most of the wireless equipments. Also, the weather proof design ensures that it can work normally for various demanding outdoor solutions.
The Outdoor Omni-Directional Antenna emits a powerful amplified signal over a 360 degree radius, delivering a strong multidirection signal from an Access Point or a Bridge. If you have multiple locations or buildings where you would like to integrate your wireless network, simply place the TL-ANT2415D in between the buildings with your Acess Point. It is most effective when placed at the top of buildings.
Easy To Use
Installation of the TL-ANT2415D is simple and straight forward. It is compatible with most wireless devices (Access Points, Routers, Bridges and Network Adapters) on the market with removable external antennas.
