Networking
Maximum operating distance |
300 m |
Ethernet LAN data rates |
10, 100 Mbit/s |
Modulation |
OFDM |
Copper ethernet cabling technology |
10BASE-T, 100BASE-TX, 100BASE-T |
Other features
Operating temperature (T-T) |
32 - 104 °F |
Power LED |
Y |
Networking features |
Fast Ethernet |
Compliance industry standards |
IEEE 802.3, IEEE 802.3u |
Ports & interfaces
Host interface |
PowerPlug |
Internal |
N |
Performance
Mac operating systems supported |
Y |
Bandwidth
Supported data transfer rates |
10/100 Mbit/s |
Additionally
Wireless technologies |
Wired |
Ethernet LAN (RJ-45) ports quantity |
1 |
Ethernet LAN connection |
Y |
Transfer rate (Mbps) |
200 Mbit/s |
AV200+, Fast Ethernet, PowerPlug, RJ-45, 128-bit AES, 3W, White
<b>AV200+ Powerline Adapter With AC Pass Through</b>
<b>Highlights:</b>
- Integrated power socket to allow additional devices access to power;
- Mains Filter for better powerline communication performance;
- HomePlug AV standard compliant for high-speed data transfer rates of up to 200Mbps;
- Plug and Play, no new wires or configuration required;
- Patented Power-Saving Mode automatically reduces power consumption by up to 70%.
<b>What This Product Does</b>

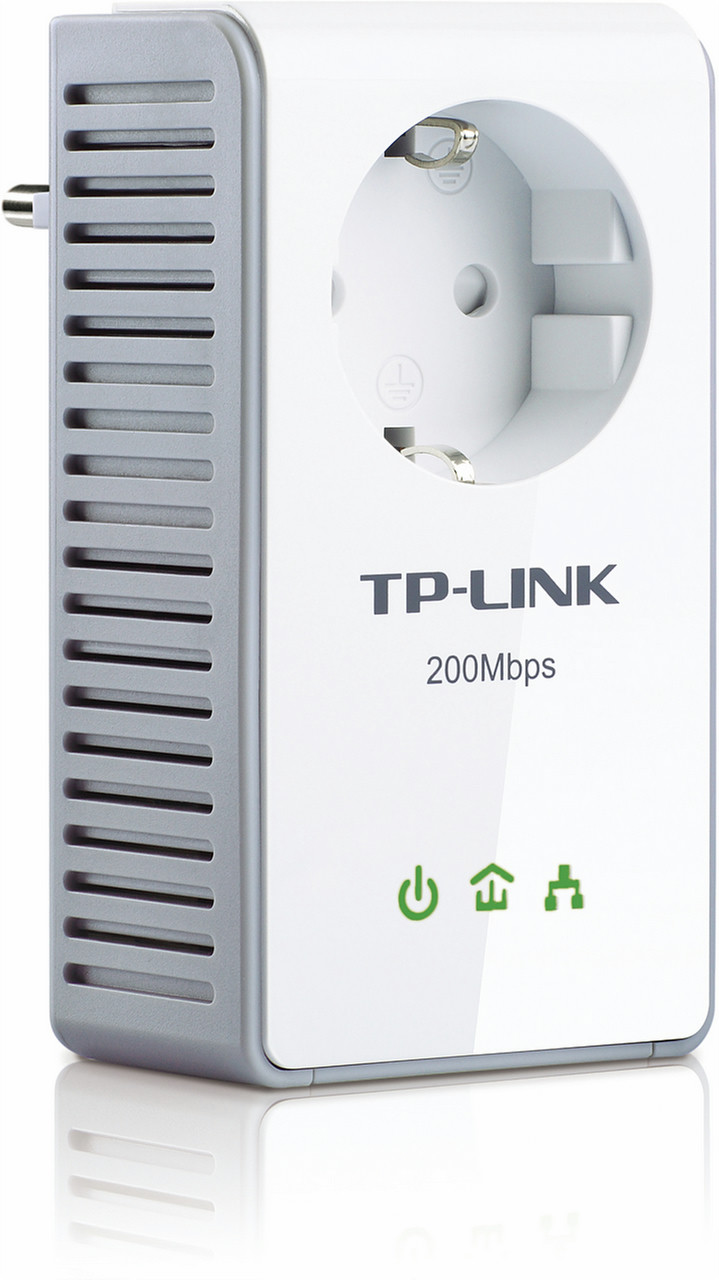

TP-LINK's powerline adapter TL-PA250 takes advantage of your home's existing electric wires to transfer data while transferring power. That means, with no additional wiring required, users can simply plug the TL-PA250 into existing power sockets and establish networking infrastructure in a flash. With an additional integrated power socket, it solves a common powerline problem where power sockets would be blocked and thus unusable for other devices. Adopting a totally new product design, the TL-PA250 enables high data transfer rates of up to 200Mbps over a home's electrical circuit for up to 300 meters with an Auto Power-Saving Mode that reduces energy consumption by up to 70%.
<b>Extra Power Socket for Additional Devices</b>
With its Integrated Power Socket, the new TL-PA250 from TP-LINK provides real convenience for your home network. The integrated power socket allows an additional device or power bar to be connected to the adapter as though it were a normal wall socket. This ensures that even with the TL-PA250 plugged in, users won't need to worry about disconnecting their internet to get power for their other devices.
<b>Mains Filter for Better Performance</b>
With its integrated mains filter, the TL-PA250 can optimize powerline communication performance by suppressing noise interference generated by surrounding electronic equipment that can affect network performance. That means that users won't experience a sudden speed drop when a larger power consuming device is plugged into the power socket.
<b>Up to 200Mbps Speed Over 300 Meters</b>
With advanced HomePlug AV technology, the TL-PA250 can provide users with a stable high-speed data transfer rate of up to 200Mbps over a home's electrical circuit for up to 300 meters.
<b>Reduces Power Consumption by Up to 70%</b>
The TL-PA250, a new generation of Powerline Adapter, with its practical product design and environment-conscious Power-Saving Mode, will automatically switch from its regular "Working Mode" to "Power-Saving Mode" that will reduce energy consumption by up to 70%.
<b>"Pair" Button for Easy Network Security</b>
Using the "Pair" button, adding a computer or network-compatible devices such as a printer, NAS hard drive or gaming console requires only three simple steps:
- Plug the adapter into the power outlet;
- Connect the device via the network cable to the adapter;
- Press the encryption buttons—and you're done.
128-bit AES encryption ensures that the network is safe and secure.
<b>Features:</b>
- HomePlug AV standard compliant, high-speed data transfer rate of up to 200Mbps, ideal for HD video streaming and online gaming;
- Integrated power socket to allow additional devices access to power;
- Mains Filter for better powerline communication performance;
- No new wires, use existing electrical wiring;
- Up to 300 meter range over a home's electrical circuit for better performance through walls or across floors;
- Plug and Play, no new wires or configuration required;
- Patented Power-Saving Mode automatically reduces power consumption by up to 70%;
- 128-bit AES encryption ensures that the network is safe simply by pressing a button on paired devices;
- Supports IGMP managed multicast IP transmission, optimizes IPTV streaming.
