System requirements
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
Performance
| WLAN data transfer rates supported |
300 Mbit/s |
| Ethernet LAN data rates |
10, 100 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
| Ethernet LAN interface type |
Fast Ethernet |
| Built-in power socket |
N |
| PowerLine standard |
HomePlug AV |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum operating distance |
300 m |
| Modulation |
OFDM |
| Power plug |
Type G |
Packaging content
| Quick installation guide |
Y |
Additionally
| Transfer rate (Mbps) |
500 Mbit/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |

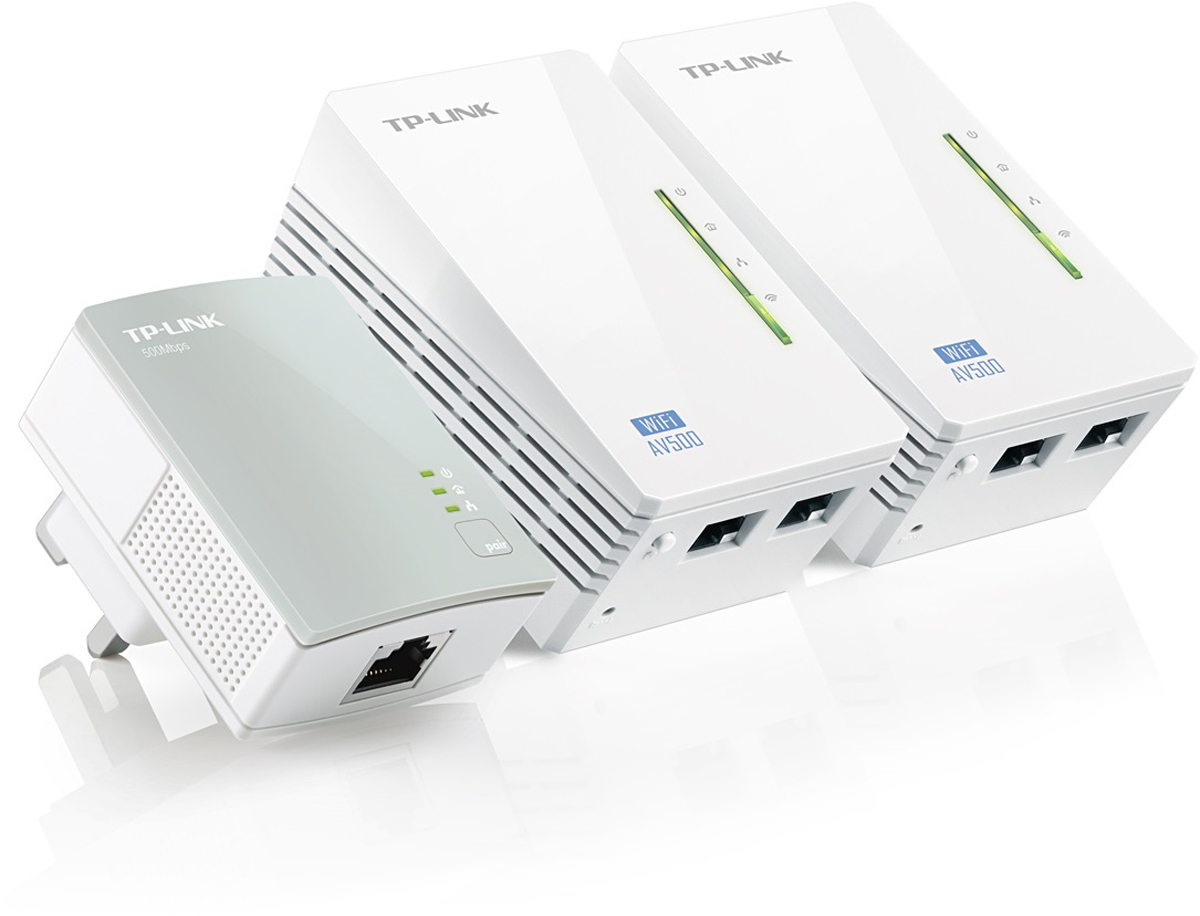

IEEE802.11 b/g/n, 300Mbps Wi-Fi/500Mbps Powerline, Fast Ethernet, White
What This Product Does
TP-LINK’s TL-WPA4220T KIT extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220T KIT simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.
One Touch Super Range Extension
With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.
Up to 500Mbps - Ideal for HD Video Streaming
With advanced HomePlug AV technology, TL-WPA4220T KIT provides you with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices - from computers, game consoles to set-top boxes for IPTV to printers and NAS hard drives.
Extend Wi-Fi Coverage to Every Room
With wireless speeds of up to 300Mbps, you can effortlessly extend your Wi-Fi network via the existing powerline and broadcast a wireless signal to share with all your Wi-Fi enabled devices in another area of your home or office.
Plug and Play
You can set up a hassle-free Powerline network within minutes with TP-LINK’s powerline adapters, just plug in and play. Also, the adapters’ “Pair” buttons can be utilized for securing or managing multiple powerline adapters in your home powerline network.
1. Plug one Internet connected adapter into a nearby power outlet.
2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi - and you're done!
