Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
Networking
| Auto MDI/MDI-X |
Y |
| Networking standards |
IEEE 802.3x, IEEE 802.3, IEEE 802.3u |
| 10G support |
N |
| Full duplex |
Y |
Power
| Power consumption (typical) |
3.68 W |
| Output voltage |
9 V |
| Output current |
0.6 A |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
Operational conditions
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
Weight & dimensions
| Depth |
146 mm |
| Width |
222 mm |
| Height |
25 mm |
Protocols
| Supported network protocols |
CSMA/CD |
Power over Ethernet (PoE)
| Power over Ethernet (PoE) |
N |
Additionally
| Colour of product |
Black |
| Operating temperature range (T-T) |
0 - 40 °C |

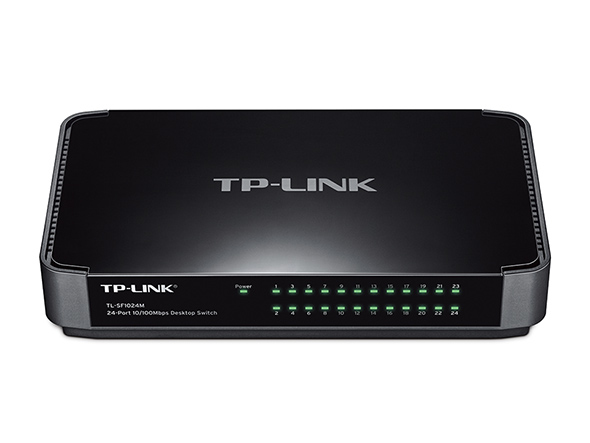

TL-SF1024M - 24-Port 10/100Mbps Desktop,
What This Product Does
The TL-SF1024M Fast Ethernet Switch is designed for SOHO (Small Office/Home Office) or workgroup users. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024M can save up to 67% of the power consumption, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SF1024M Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials.
High Performance
TL-SF1024M Fast Ethernet Switch provides 24 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture, TL-SF1024M forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024M work reliably.
Easy to Use
The auto features of this switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
