Data transmission
| MAC address table |
8000 entries |
| Store-and-forward |
Y |
| Switching capacity |
96 Gbit/s |
| Jumbo frames |
10 |
| Throughput |
7.14 Mpps |
Networking
| Auto MDI/MDI-X |
Y |
| Flow control support |
Y |
Packaging data
| Rack mount kit |
Y |
| Rubber feet |
Y |
| Quick start guide |
Y |
Ports & interfaces
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Console port |
RJ-45 |
| DC-in jack |
Y |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
Design
| Form factor |
1U |
| Rack mounting |
Y |

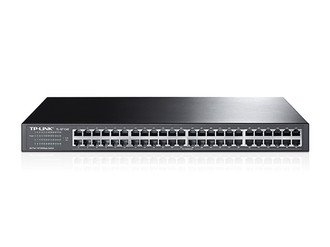

48-Port 10/100Mbps Rackmount Switch
- 48 10/100Mbps RJ45 ports
- Innovative energy-efficient technology saves power up to 50%
- Supports MAC address self-learning and auto MDI/MDIX
- Standard 19-inch rack-mountable steel case
What This Product Does
The TL-SF1048 10/100Mbps Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SF1048 10/100Mbps Switch features the latest innovative energy-effcient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
Featuring non-blocking switching architecture，TL-SF1048 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably.
Easy to Use
The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.
- Innovative energy-efficient technology saves power up to 50%
- 100% Data filtering rate eliminates all error packets
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture forwards and filters packets at full wire-speed for maximum throughput
- 9.6Gbps Switching Capacity
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Support the port N-Way Auto-Negotiation, Store and Forward
- Compact size design for desktops, Rackmountable
- Plug and Play design simplifies installation
