Wireless LAN features
| Wi-Fi |
Y |
| Top Wi-Fi standard |
IEEE 802.11n |
| Wi-Fi standards |
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
Networking
| Modulation |
OFDM, DBPSK, 16-QAM, CCK, 64-QAM, DQPSK |
Antenna
| Detachable antenna(s) |
Y |
| Frequency range |
2.4 - 5.825 GHz |
| Antenna connector type |
RP-SMA |
| Antenna |
Y |
| Gain |
2 dBi |
Performance
| Receiver sensitivity |
270M_2.4GHz: -70dBm@10% PER\n195M_2.4GHz: -71dBm@10% PER\n130M_2.4GHz: -74dBm@10% PER\n54M_2.4GHz: -79dBm@10% PER\n11M_2.4GHz: -87dBm@8% PER\n6M_2.4GHz: -94dBm@10% PER\n1M_2.4GHz: -99dBm@8% PER\n270M_5GHz: -67dBm@10% PER\n195M_5GHz: -70dBm@10% PER\n130M_5GHz: -73dBm@10% PER\n54M_5GHz: -79dBm@10% PER\n6M_5GHz: -92dBm@10% PER |
Bandwidth
| Supported data transfer rates |
300, 54, 11Mbps |
Ports & interfaces
| Host interface |
PCI-E |
| Internal |
Y |
Additionally
| Ethernet LAN connection |
N |
| Transfer rate (Mbps) |
300 Mbit/s |
| Wireless technologies |
Wireless |
Wireless, 2.4GHz / 5GHz, 300Mbp, 802.11 a/b/g/n, PCI Express x1, 2 x 2dBi
<b>Highlights:</b>
- Dual Band support - 2.4GHz or 5GHz channels bring an optimized HD video streaming, file sharing and online experience
- Wireless speeds of up to 300Mbps
- Two antennas increase wireless performance and stability
<b>What This Product Does</b>

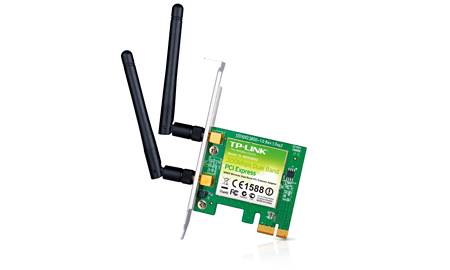

TP-LINK’s N600 Wireless Dual Band PCI Express Adapter, TL-WDN3800 allows you to connect a desktop computer to a wireless network and access a high-speed wireless network connection. Complying with IEEE 802.11 a/b/g/n, the device can use the 2.4GHz or 5GHz channels and provide wireless speeds of up to 300Mbps which is ideal for users seeking a highly robust, bandwidth intensive wireless networking experience, particularly with HD video streaming and online gaming.
<b>Dual Band</b>
Dual Band is the latest wireless technology allowing the adapter to connect with a 2.4GHz or 5GHz network. This allows you to check e-mail and browse the Internet using the 2.4GHz band or stream HD movies and other media on the 5GHz band. The advantage of working on the 5GHz band is that, unlike the crowded 2.4GHz band shared with microwaves, cordless phones and other wireless networks, it has much less interference and can provide a more stable wireless signal, which is ideal for online gaming and HD video streaming.
<b>Wireless N Speed up to 300Mbps</b>
Both the adapter’s 2.4GHz and 5GHz bands support wireless speed of up to 300Mbps, which is ideal for interruption sensitive applications like HD video streaming.
<b>WPA / WPA2 Encryptions - Advanced Security</b>
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
<b>Easy Operation</b>
TL-WDN3800 comes with a CD utility that helps you complete the software installation and wireless network settings, including security configurations and wireless connection, which makes setting up your network so easy that even for novice users should be up and running in minutes.
