Security
| Firewall |
Y |
| IP address filtering |
Y |
| MAC address filtering |
Y |
| DoS attack prevention |
Y |
| VPN support |
PPTP, L2TP, IPSec |
| Firewall security |
SPI |
Wireless LAN features
| WLAN data transfer rate (max) |
450 Mbit/s |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11n, IEEE 802.11g |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Top Wi-Fi standard |
IEEE 802.11n |
Protocols
| DMZ support |
Y |
| DHCP server |
Y |
| DHCP client |
Y |
Antenna
| Antennas quantity |
3 |
| Detachable antenna(s) |
N |
| Antenna gain level (max) |
5 dBi |
Ethernet LAN features
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10, 100 Mbit/s |
Management features
| WPS push button |
Y |
| Web-based management |
Y |
| Reset button |
Y |
| Quality of Service (QoS) support |
Y |
| Universal Plug and Play (UPnP) |
Y |
Software
| Mac operating systems supported |
Y |
Networking
| Receiver sensitivity |
270M: -68dBm@10% PER\n130M: -68dBm@10% PER\n108M: -68dBm@10% PER\n54M: -68dBm@10% PER\n11M: -85dBm@8% PER\n6M: -88dBm@10% PER\n1M: -90dBm@8% PER |
| Port forwarding |
Y |
Additionally
| Ethernet LAN connection |
Y |
| On/Off switch |
Y |
| Ethernet LAN (RJ-45) ports quantity |
4 |
| AC adapter bundled |
Y |
802.11b/g/n, 4x Fast Ethernet, 450Mbps, 2.4GHz, 3x 5dBi
- 450Mbps wireless speed ideal for interruption sensitive applications like HD video streaming
- Three antennas increase the wireless robustness and stability
- Easy wireless security encryption at a push of WPS button
- IP based bandwidth control allows administrators to determine how much bandwidth is allotted to each PC
<b>What This Product Does</b>

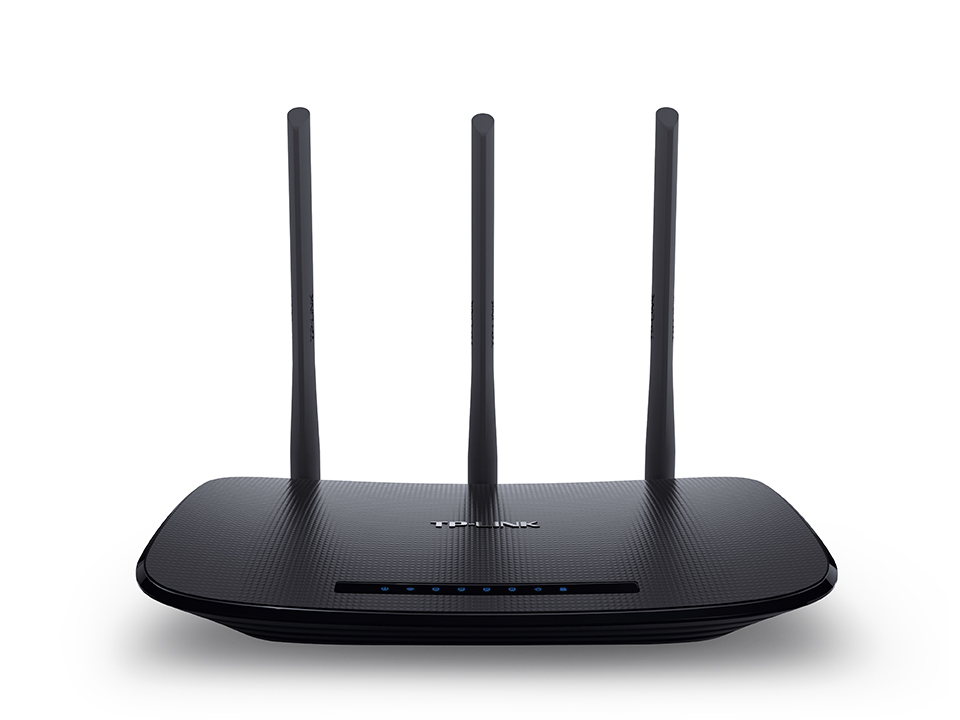

450Mbps Wireless N Router TL-WR940N is a combined wired/wireless network connection device designed specifically for small business and home office networking requirements. With MIMO Technology, TL-WR940N creates an exceptional and advanced wireless performance, making it ideal for streaming HD video, VoIP and online gaming. Also, WPS button on the sleek and fashionable exterior ensures WPA2 encryptions, preventing the network from outside intrusions.
<b>Wireless N Speed & Range</b>
Complying with the IEEE 802.11n standard, TL-WR940N can establish a wireless network and get up to 15X the speed and 5X the range of conventional 11g products. Also, with transmission rates up to 450Mbps, it shows more excellent abilities of mitigating data loss over long distances and through obstacles in a small office or a large apartment, even in a steel-and-concrete building. Above all, you could easily pick up the wireless network during long-distance connection where legacy 11g products may not!
<b>Better Wireless Performance</b>
The router has the speed to work smoothly with almost any bandwidth intensive application including VoIP, HD streaming, or online gaming, without the lag. Using its powerful N technologies, the router is also able to mitigate data loss over long distances and through obstacles turning your home and even your yard into one big hot - spot.
<b>WPA / WPA2 Encryptions</b>
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
<b>Easy Setup</b>
Either using the optimized user interface and setup wizard or the CD (included) setup wizard will allow you to get ‘online’ quickly and easily.
