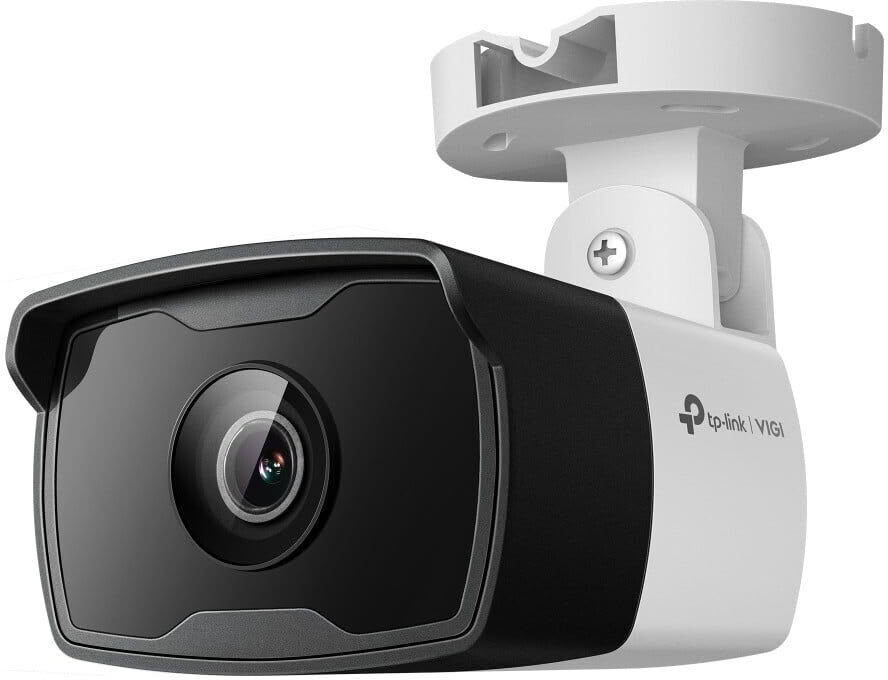

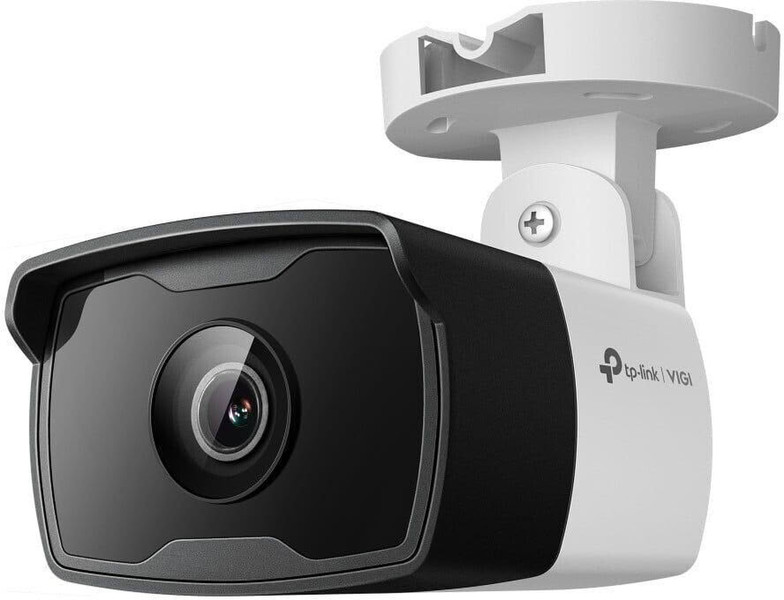

TP-Link VIGI C340I (6 mm)

Camera types: IP camera, infrared camera, cylinder camera
Series: tp-link VIGI

Equipment
Functions: Password protection, IR-Cut Filter, NAS-capable, suitable for network recorder, cloud function, IP address filter, with IR-LEDs, Region of Interest (ROI), data backup, tampering detection, with notification function, day and night function, low-speed shutter
Video functions: with night vision function, with vehicle detection, with live viewing, with person detection
Number of cameras: 1
Connections: 5.5 mm coaxial, RJ-45
Power supply: PoE (Power over Ethernet), DC 12 V

Housing
Housing color: white
Mounting types: Wall mounting, ceiling mounting, surface mounting
Protection class: IP67
Application area: outside
Swivel range: +/- 90°
Tilt range: +/- 90°
Outdoor functions: weatherproof, dust-protected
Temperature range: -30 to 60 °C
Weight: 200 g
Dimensions (W x H x D): 73 x 71 x 174 mm

Network
Interface: RJ45
System requirements software: Firefox, Safari, Chrome, Edge
Protocols: TCP/IP, UDP, ICMP, DHCP, HTTP, HTTPS, SSL/TLS, NTP, DNS, RTSP, ONVIF, UPnP UDP

Lens
Objective focal length: 6 mm
Lens properties: fixed focal length
Lens mount: M12
Light sensitivity IR: 0 Lux
Light sensitivity without IR: 0,01 Lux

Video & Image
IR range: 30 m
Number of infrared LEDs: 2
Resolution: 2.560 x 1.440 Pixel
Images per sec.: 5, 30, 10, 15, 20, 25, 1
horizontal field of view: 47,7 °
vertical field of view: 26,5 °
diagonal viewing angle: 56 °
Sensor type: 1/3" Progressive Scan CMOS
Image sensor: 4 Megapixel
Image enhancements: Digital Wide Dynamic Range (D-WDR), Digital Noise Reduction (3D-DNR), Backlight Compensation (BLC), Highlight Compensation (HLC)
Video formats: H.264, H.265, H.264+, H.265+
Video recording: HD

Further properties
suitable for: Darkness
