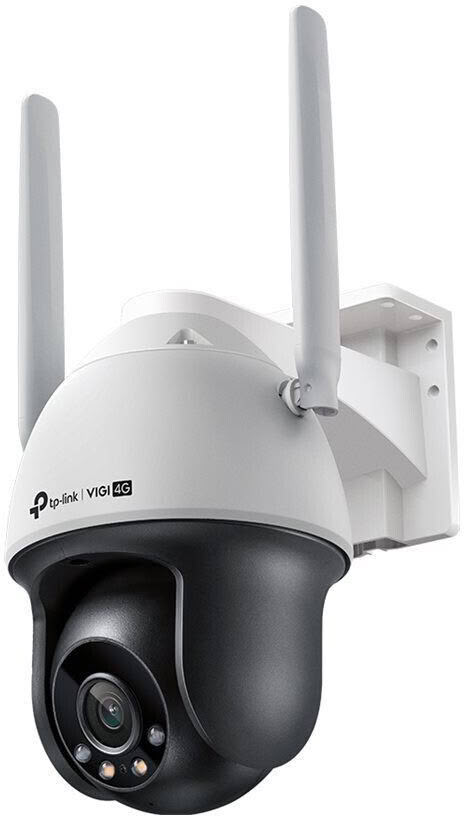

Camera types: IP camera, PTZ camera, infrared camera
Series: tp-link VIGI
Equipment
Equipments: with integrated speaker, with microphone, with integrated lamp
Functions: 360° rotatable, motion detection, alarm function, with notification function, electronic panning, tilting, zooming (ePTZ), IR-cut filter, IP address filter, suitable for network recorder, cloud function, password protection, pan/tilt function, region of interest (ROI)
Audio function: 2-way audio
Video functions: with vehicle detection, with person detection, with night vision function, with live viewing, with recording function
supported memory cards: microSD
Connections: SIM card slot, RJ-45, 5.5 mm coaxial
Housing
Housing colors: white, black
Mounting types: Surface mounting, ceiling mounting, wall mounting
Protection class: IP66
Application area: outside
360° rotatable: yes
Swivel range: 348 °
Tilt range: -10 - 110 °
Outdoor functions: waterproof, dustproof
Temperature range: -30 to 60 °C
Weight: 690 g
Dimensions (W x H x D): 120 x 182 x 201 mm
Network
Interfaces: 4G, LTE
App Support: yes
App Features: Live View, Change Settings
LAN standard: Ethernet 10/100
System requirements software: Chrome, Firefox, Edge, Safari
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, ONVIF
Lens
Objective focal length: 4 mm
Lens properties: fixed focal length
Lens mount: M12
Light sensitivity IR: 0 Lux
Light sensitivity without IR: 0,005 Lux
Video & Image
IR range: 30 m
Number of infrared LEDs: 2
Resolution: 2.560 x 1.440 Pixel
Images per sec.: 30
horizontal field of view: 80 °
vertical field of view: 43 °
diagonal viewing angle: 94 °
Sensor type: 1/3,06” Progressive Scan CMOS
Image sensor: 4 Megapixel
Image enhancements: Backlight Compensation (HLC), Backlight Compensation (BLC), 3D Digital Noise Reduction (3D-DNR), Digital Wide Dynamic Range (D-WDR)
Video formats: H.265+, H.265, H.264+, H.264
Video recording: Color
Audio formats: G.711
Further properties
Scope of delivery: Power supply, antenna x2
Operating voltage: 12 V
suitable for: Darkness
