Performance
| Wavelength |
1310 nm |
| Sensitivity |
-31 dBmW |
| Tx power (min) |
-15 dBmW |
| Maximum transfer distance |
20000 m |
| Fiber mode structure |
Single-mode |
| Tx power (max) |
-8 dBmW |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Wireless technologies |
Wired |
100BASE-TX (RJ-45) [100 m/328 ft.], 100BASE-FX 1310nm single mode (SC) [20 km/12.4 mi.]

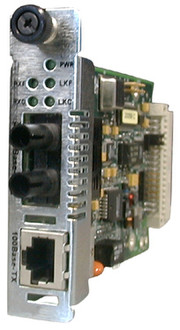

This Fast Ethernet media converter solution provides a fully-managed conversion between 100BASE-TX and 100BASE-FX signals at the Central Office (CO) and Customer Premises.
With the Remotely Managed Fast Ethernet Media Converter, service providers can now monitor and manage the entire optical link from the CO to the Customer Premise Equipment (CPE). They also have the ability to remotely change the bandwidth offered to the customer in increments of 64 KBps and choose the appropriate mode of connection straight from their Network Management Centers.
