Performance
| Tx power (min) |
-15 dBmW |
| Link budget |
16 dB |
| Maximum transfer distance |
2000 m |
| Tx power (max) |
-8 dBmW |
| Wavelength |
1300 nm |
Networking
| Copper ethernet cabling technology |
100BASE-FX, 100BASE-TX |
| Converter input interface |
100Base-TX |
| Converter output interface |
100Base-FX |
| Data transfer rate |
100 Mbit/s |
| Ethernet LAN data rates |
100 Mbit/s |
Other features
| Compliance industry standards |
IEEE Std. 802.3 100BASE-FX, 100BASE-TX |
Power
| Input voltage |
12 V |
| Input current |
0.5 A |
Additionally
| Transfer rate (Mbps) |
100 Mbit/s |
| Wireless technologies |
Wired |
| Ethernet LAN (RJ-45) ports quantity |
1 |

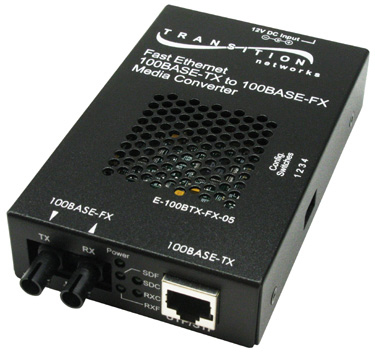

100BASE-TX to 100BASE-FX, 100 Mbit/s, ST, IEEE 802.3, 76 x 119 x 25 mm, 0.9 kg
-Operates under heavy traffic loads without excess heat, so there is no need for a failure-prone internal fan.
-Round trip delay of only 40 bit times—far below the Class II rating of 92 bit times.
-
Auto-Negotiation (802.3u)
Allows devices to perform automatic configuration to achieve the best possible mode of operation over a link.
-
AutoCross™
Automatically detects and configures the twisted pair port on the converter to the correct MDI or MDI-X configuration.
-
Link Pass Through
Link Pass Through is a troubleshooting feature that allows the media converter to monitor both the fiber and copper RX ports for loss of signal.
-
Far End Fault (FEF)
A troubleshooting feature that is generally used in conjunction with Link Pass Through to notify both end devices of a loss of link.
-
Automatic Link Restoration
Transition Networks's converters will automatically re-establish link in all network conditions.
-
Pause (IEEE 802.3xy)
Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed.
-The converters will also automatically re-establish link when connected to two 10/100 auto-negotiating switches if link is lost. With other manufacturers' converters the user must intervene to re-establish link.
