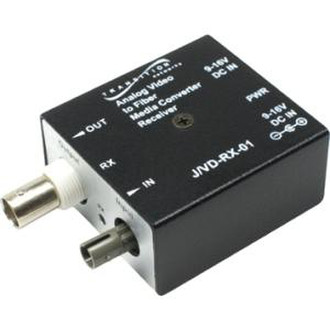

Transition Networks J/VD-RX-01 AV receiver Black

J/VD-RX-01, 1 x Coax (BNC), 1 x 850nm ST, 1km, Black Transition Networks’s analog video media receiver, J/VD-RX-01, converts the optical signal back to an analog composite video signal. All conversion is performed in real time. Automatic gain control installed on both Transmitter and Receiver maintains desired quality of video’s contrast and brightness for extended distances. No field adjustments are necessary. Wide input range power supply allows for multiple choices of power source including camera power supply.

- AM Modulation
- NTSC, PAL, SECAM compatibility
- Compatible with all video CCTV equipment
- Real Time Full Color Video
- Automatic Gain Control on Transmitter
- Automatic Gain Control on Receiver
- Link Pass Through
<b>Wide input power supply:</b>
- Transmitter: 9 – 24 VAC; 9 – 40 VDC
- Receiver: 9 – 16 VAC/DC
<b>Video Specification:</b>
- Input Video: 0.5 to 2-volt pk-pk (75 ohms)
- Bandwidth: 5 Hz – 10 MHz
- Differential Gain: < 5 %
- Differential Phase: < 5°
- Tilt: < 1%
- Signal/Noise Ratio: 60dB
