Networking
| Cabling technology |
10BASE-T, 100BASE-T, 1000 BASE-TX |
| Wi-Fi |
Y |
Performance
| Number of managed Wi-Fi Access Points (max) |
192 |
Additionally
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
MX-200R, Gigabit Ethernet, WLAN, 802.1x, 802.3i/u, 802.3ab, 802.11 a/b/g/n, 802.11d/e/h/i, 802.1D/Q, 802.3ad, 100-240 V 50-60 Hz, 50W, black

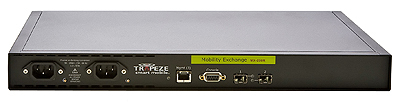

Mobility Exchange MX-200R
The MX-200R is designed for data center, or distributedwiring closet installations, and enables seamless and secure deployment of enterprise class wireless networks over any existing L2/L3 network without disruption. The MX-200R supports up to 192 access points. Licenses come in increments of 32 supported MPs for optimum price performance throughout the growth of your wireless LAN.
It also features 2 Gigabit Ethernet ports which accept Small-Form Pluggable (SFP) optics for 1000BASE-SX/LX fiber connectivity, or 1000BASE-T unshielded twisted-pair (UTP) environments, and comes with a redundant power supply as standard. Operating in conjunction with Trapeze Mobility Point® (MP®) access points, and Mobility System Software™(MSS™), MX controllers can offload policy enforcement and data forwarding to the MPs, resulting in optimized traffic flow, radically reduced latency, and massive scalability.
The MX-200R combines L2 Ethernet switching, stateful per user and per service firewalls, wireless intrusion protection, 802.1Q trunking and per VLAN spanning tree (PVST+), complete wired to wireless quality of service (QoS), and automated RF management. Clusters of MXs called a Mobility Domain™ provide seamless roaming, intrusion protection and RF management over the largest single site wireless LAN deployments. A Network Domain™ interconnects and distributes Mobility Domains to enable identity-based networking across wide geographic regions. MX controllers can be configured as a virtual controller cluster to provide many-to-many redundancy, without needing expensive hot standby controllers. This enables NonStop Wireless availability for all sessions, even voice calls in the event that a controller goes offline for any reason.
The MX-200R uses the same Mobility System Software as all other Trapeze MX controllers. For more information about the security and networking capabilities of the MX-200R, please read the Mobility System Software data sheet.
