Performance
| Receiver sensitivity |
802.11a: -68 dBm (typical) @ 54 Mbps\n802.11b: -84 dBm (typical) @ 11 Mbps\n802.11g: -72 dBm (typical) @ 54 Mbps\n802.11n: -68 dBm (typical) @ 450 Mbps 2.4 GHz\n802.11n: -68 dBm (typical) @ 450 Mbps 5 GHz\n802.11ac: -55 dBm (typical) @ 1.3 Gbps |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Wi-Fi data rate (max) |
1300 Mbit/s |
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| Networking standards |
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Channels quantity |
13 channels |
| Certification |
CE, FCC |
| Modulation |
16-QAM, 256-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, OFDM, QPSK |
| Frequency band |
2.4 - 5 GHz |
Packaging content
| Cables included |
LAN (RJ-45) |
Antenna
| Integrated antenna |
Y |
| Antenna gain level (max) |
6 dBi |
Power
| Input voltage |
100 - 240 V |
| Power consumption (typical) |
20 W |
| Input frequency |
50 - 60 Hz |
| Input current |
0.8 A |
Security
| Security algorithms |
WDS, WPA-PSK, WPA2-PSK, WPA2-RADIUS, WPS |
| MAC address filtering |
Y |
Design
| Internal |
N |
| LED indicators |
Y |
Weight & dimensions
| Depth |
155 mm |
| Weight |
340 g |
| Width |
48 mm |
| Height |
180 mm |
Operational conditions
| Operating relative humidity (H-H) |
0 - 85% |
Protocols
| Supported network protocols |
IPv6 |
Additionally
| Colour of product |
Black |
| Transfer rate (Mbps) |
1300 Mbit/s |
| AC adapter bundled |
Y |
| Ethernet LAN (RJ-45) ports quantity |
1 |
| Operating temperature range (T-T) |
0 - 40 °C |
Gigabit Ethernet, 802.11b/g/n/ac, 2.4/5 GHz, 340 g
- High performance concurrent dual band Wireless AC access point.
- AC1750: 1.3 Gbps Wireless AC + 450 Mbps Wireless N bands.
- Access Point (AP), Client, Repeater, WDS, and WDS + AP modes.
- Gigabit LAN port.
- Connect devices with one-touch Wi-Fi Protected Setup (WPS).

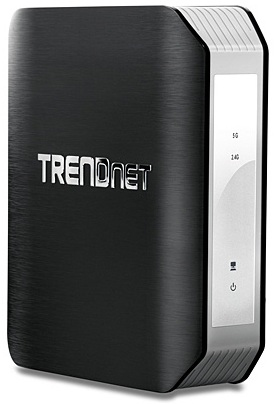

TRENDnet’s high performance AC1750 Dual Band Wireless Access Point, model TEW-815DAP, supports Access Point (AP), Client, Repeater, Wireless Distribution System (WDS) Bridge, and WDS + AP modes. The TEW-815DAP generates concurrent 1.3 Gbps Wireless AC and 450 Mbps Wireless N networks. Embedded GREENnet technology reduces power consumption by up to 50%.
Multi-Mode Support
Supports Access Point (AP), Client, Repeater, Wireless Distribution System (WDS), and WDS + AP modes.
One Touch Connection
Securely connect to the access point at the touch of the Wi-Fi Protected Setup (WPS) button.
Multi Language
Multi Language Interface: English, Spanish, French, German, and Russian.
Logs
Real time logs and statistics help trouble shooting.
Encrypted Wireless
Support for wireless encryption up to WPA2.
Multiple SSIDs
Create up to four SSIDs per wireless band.
Next Generation Wireless AC
802.11ac provides uninterrupted HD video streaming in a busy connected environment.
Simultaneous Dual Band
High performance 1.3 Gbps Wireless AC + 450 Mbps Wireless N bands.
Wireless Coverage
Extended wireless coverage with MIMO antenna technology.
Compatibility
Compatible with legacy wireless devices.
Gigabit Port
Gigabit LAN port maintains high performance connections to the wired network.
Energy Savings
Embedded GREENnet technology reduces power consumption by up to 50%.
IPv6
IPv6 network support.
Targeted Beamforming
Increased real-time performance by directing stronger wireless signals to your specific location.
