Packaging content
| Cables included |
LAN (RJ-45) |
| Quantity per pack |
1 pc(s) |
| Quick installation guide |
Y |
Performance
| WLAN data transfer rates supported |
300 Mbit/s |
| Ethernet LAN data rates |
10, 100, 1000 Mbit/s |
| Top Wi-Fi standard |
IEEE 802.11n |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Built-in power socket |
N |
| PowerLine standard |
HomePlug AV |
| Security algorithms |
128-bit AES |
| Networking standards |
IEEE 1901, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Encryption button |
Y |
| Wi-Fi |
Y |
| Wi-Fi standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum operating distance |
300 m |
| Power plug |
Type C |
Power
| Power consumption (typical) |
8 W |
| Current |
0.2 A |
| AC input voltage |
100-240 V |
| AC input frequency |
50/60 Hz |
Weight & dimensions
| Depth |
100 mm |
| Weight |
164 g |
| Width |
65 mm |
| Height |
77 mm |
System requirements
| Windows operating systems supported |
Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8.1, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
Operational conditions
| Operating relative humidity (H-H) |
0 - 90% |
Additionally
| Colour of product |
White |
| Transfer rate (Mbps) |
500 Mbit/s |
| Ethernet LAN connection |
Y |
| Ethernet LAN (RJ-45) ports quantity |
2 |
| Operating temperature range (T-T) |
0 - 40 °C |

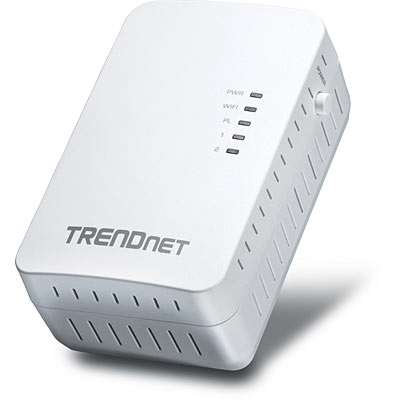

Powerline 500 AV Wireless Access Point, 300 m, 2 x 10/100 Mbps
- Create or expand a wireless network with this Powerline adapter
- 500 Mbps Powerline and 300 Mbps Wireless N
- Easy no-CD installation
- Two convenient Ethernet ports
- Two Powerline devices are required to start a network
TRENDnet’s Powerline 500 AV Wireless Access Point, model TPL-410AP, uses an electrical outlet to create or expand a wireless network. Two Powerline adapters are needed to start a network. Connect one adapter to a router and plug in the TPL-410AP on your electrical system to create or expand a high performance wireless network.
