Trendnet TEG-10GBS10 network transceiver module

Trendnet TEG-10GBS10 network transceiver module

EAN: 710931140187
MPN: TEG-10GBS10
🚚 Select the country of delivery:
Delivery from:
Germany
Updating price ... 📣 Send Price inquiry Не поставляется
Delivery cost & estimated delivery time:
От
days

Where to buy and prices (Advertising *)

On Top
в наличии
* Alle Preise inkl. der jeweils geltenden gesetzlichen Mehrwertsteuer, ggfs. zzgl. Versandkosten. Alle Angaben ohne Gewähr. Preisänderungen sind in der Zwischenzeit möglich.

Technical specifications

On Top

Performance

Hot-Plug support Y
Maximum transfer distance 10000 m
Wavelength 1310 nm

Networking

Interface type SFP+
Fiber ports quantity 1

Additionally

Transfer rate (Mbps) 10000 Mbit/s

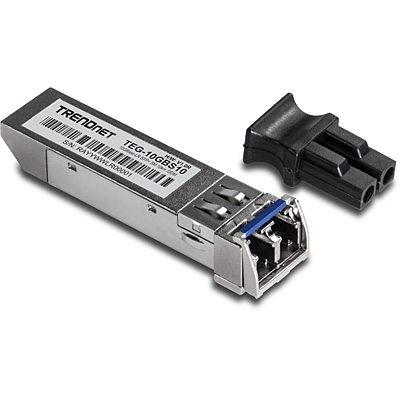

SFP+ MSA, 10GBASE-SR, 10.5 Gbps, 1310 nm, 10 km TRENDnet’s hot-pluggable TEG-10GBS10, 10GBASE-LR SFP+ Single Mode LC Module, works with a MSA compliant SFP+ slot. This Single Mode transceiver spans distances up to 10 km (6.2 miles), comes with a LC duplex connector, and supports up to 10.5 Gbps networking throughput speeds. Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage.

Hot-Pluggable SFP+
Hot-pluggable SFP+ transceiver works with a MSA compliant SFP+ slot

Fiber Wavelength
Compatible with Single Mode 1310 nm transmissions

Fiber Distance
Supports networking for distances up to 10 km (6.2 miles)

Fiber Port
LC-type duplex connector

DDM Support
Digital Diagnostics Monitoring (DDM) captures critical device parameters such as transmit/receive power, temperature, and voltage

Power Supply
Single 3.3 volt power supply

Operating Temperature
Rated for an operating temperature range of 0 to 70 °C (32 to 158 °F)

Standards
Compliant with SFF-8431, SFF-8432, SFF-8472, 10G FC Rev 4.0, FC-PI-4 Rev 7.0, and IEEE802.3ae 10GBASE-LR/LW
